Air line equipment provides unsurpassed sensing, regulation and filtration performance for your pneumatic system. With our large range of pneumatic preparation products, we can provide the clean dry air necessary to achieve the best performance required by your fluid power system. Our connectors simplify the plumbing of all your components. BLCH's innovative one-touch and uni-thread one touch fitting technology provides dramatic time savings during the installation of both air fittings and pneumatic flow controls. We offer many variations and sizes to suit any application. Tubing is made in several sizes and packaged in a variety of lengths.
Specification:
We have a variety of pneumatic accessories that have not been shown, if you need it, please do not hesitate to contact us, if you need to customize, please send us the drawing, I am glad to serve you!

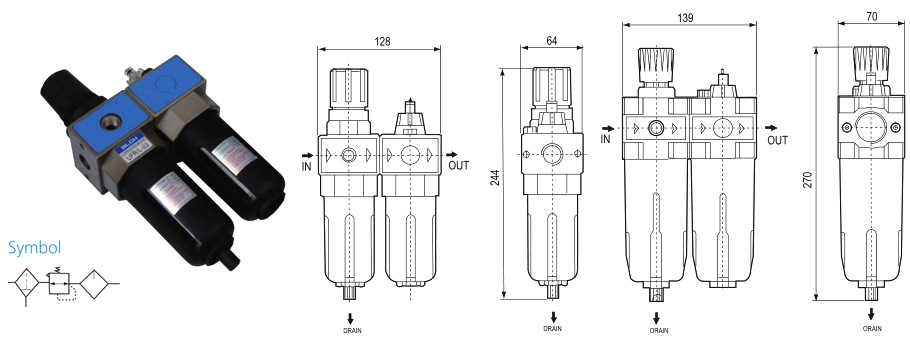

Overall Dimension(mm)
Specification
Model | Components | Port size Rc(G) | Max. Flow L/min(ANR) | Working pressure range MPa | Options/Description | |
Filter-Regulator | Lubricator | |||||
UFR/L-02 | UFR-02 | UL-02 | 1/4″ | 2080 | 0.15~0.85 | Differential pressure drain type (Standard type)-D automatic drain typeEnvironment current temperature: 5-60℃Recommended oil: Turbine oil No. ISOVG32 |
UFR/L-03 | UFR-03 | UL-03 | 3/8″ | 2100 | ||
UFR/L-04 | UFR-04 | UL-04 | 1/2″ | 2600 | ||
UFR/L-06 | UFR-06 | UL-06 | 3/4″ | 7940 | ||
UFR/L-08 | UFR-08 | UL-08 | 1″ | 8200 | ||
| Applicable Industries: Manufacturing Plant | Port size: 1/2″ |
| Type: Source Treatment Unit | Fluid: Air |
| Place of Origin: Zhejiang, China | Body Material: Die-casting Aluminum Alloy |
| Brand Name: BLCH | Working medium: Air Water Oil Gas |
| Material: Aluminum Alloy, Aluminum Alloy | Application: Filter clean air |
| Product name: Air source treatment | Working Pressure: 0.15-0.8Mpa |
| Color: Silver green |
