Air preparation UL series Air Lubricator

loading

Share to:
  • Lubricator oil can be replenished without stopping air supply.
  • Oil spray in mist ensures good lubrication for machines.
Availability:
Inquire

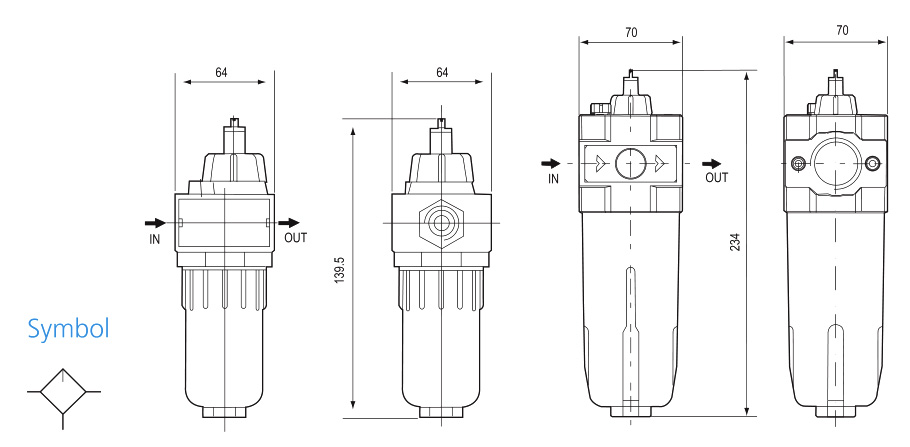

    Overall Dimension(mm)

    UL series Air Lubricator

    Specification

    Model

    Port size Rc(G)

    Max. Flow

    L/min(ANR)

    Working pressure range MPa

    Options/Description

    UL-02

    1/4″

    2490

    0.15~0.85

    		  Environment current temperature: 5~60℃Recommended oil: Turbine oil No. I5OVG32ISOVG32

    UL-03

    3/8″

    2525

    UL-04

    1/2″

    4310

    UL-06

    3/4″

    8400

    UL-08

    1″

    9000
