Air preparation FRL 700A F.R.L 3 units combination air filter

loading

Share to:
  • Remove water and particle effectively.
  • Compact size with effective air service.
  • 40µm and 5µm filter element are easily interchangeable and replaceable.
  • Accurate and easy pressure setting.
  • Oil spray in mist ensures good lubrication for machines.
  • Strict quality control offers product stable quality and long life.
  • Color: Black Cap
    Packing: Paper Carton
    Working pressure: 0.05-0.85MPa
    Working temperature: 5~60
    Warranty: 1.5 years
    MOQ: 1 Piece
Availability:
Inquire

    3 units combination air filter


    Brand Name: BLCH or blank or OEM

    Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

    Weight (KG): 2

    Video outgoing-inspection: Provided

    Machinery Test Report: Provided

    Type: Source Treatment Unit

    Place of Origin: Zhejiang, China

    Material: paper box, Aluminum Alloy

    Port size: 3/8

    Product name: pneumatic actuator

    Working medium: Compressed Air

    Application: Automated Assembly Line

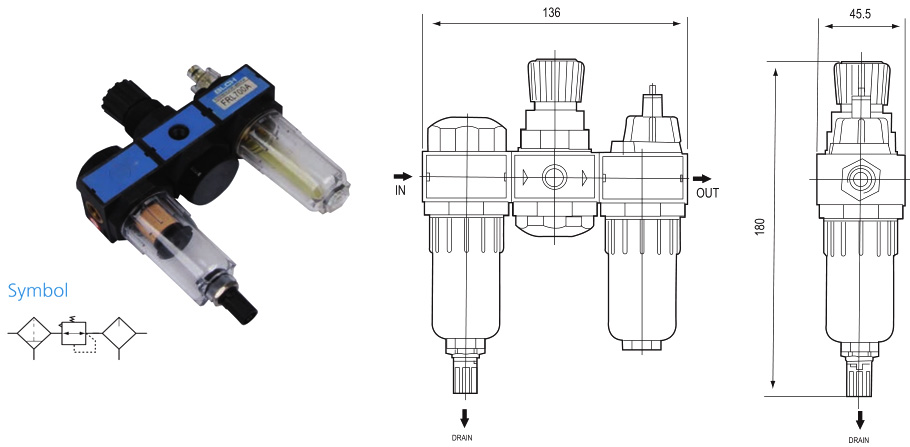

    Overall Dimension(mm)

    FRL 700A Three-point combination

    Specification

    Model

    Components

    Port size

    Rc(G)

    Max. Flow

    L/min(ANR)

    Working pressure range MPa

    Options/Description

    Filter

    Regulator

    Lubricator

    FRL700A-01

    F200A

    R200A

    L200A

    1/8″

    1850

    0.15~0.85

    		 Differential pressure drain type (Standard type)

    FRL700A-02

    F200A

    R200A

    L200A

    1/4″

    1850
    		Environment current temperature:5~60℃Recommended oil: Turbine oil No. ISOVG32
