Product Feature
1.Direct acting and normally closed type.
2.If the duration of direction -change is long , the vakves wth lock may be selected
3.The clamping framework is steady and reliable that it is easy and quick to unlock. However, with the limitation of the dimension of structure, it can’t bear frequent strong impact.
Ordering code
| MODEL: | FV-02 | |
| FV | _ | 02 |
| Model | port size | |
| 3/2 way | 02 : 1/4″ | |
| MODEL: | 3F210/3F210-08L | |||
| 3F210/3F210 | _ | 08 | L | |
| Model | Port size | Note | ||
| 3FM210 | 3/2 way Mini type | 06: G1/8 | No this code | |
| 08: G1/4 | ||||
| 3F210 | 3/2 way | 06: G1/8 | Blank :without lock | |
| 08: G1/4 | L: with lock | |||
Specification
| Model | FV-02 | 3F210-06 | 3F210-08 | 3FM210-06 | 3FM210-08 |
| Working Fluid | Air (to be filtered by 40um filter element) | ||||
| Operating | Acting type controlled by foot normal closed | ||||
| Port Size | 1/4″ | 1/8″ | 1/4″ | 1/8″ | 1/4″ |
| Port and position | 3/2 way | ||||
| Working pressure Range | 0-0.8MPa (0-114psi) | ||||
| Proof Pressure | 1.5MPa (215psi) | ||||
| Ambient temperature | 0-70℃ | ||||
| Material of body | FV 3F: Aluminum alloy , 3FM: Plastic | ||||

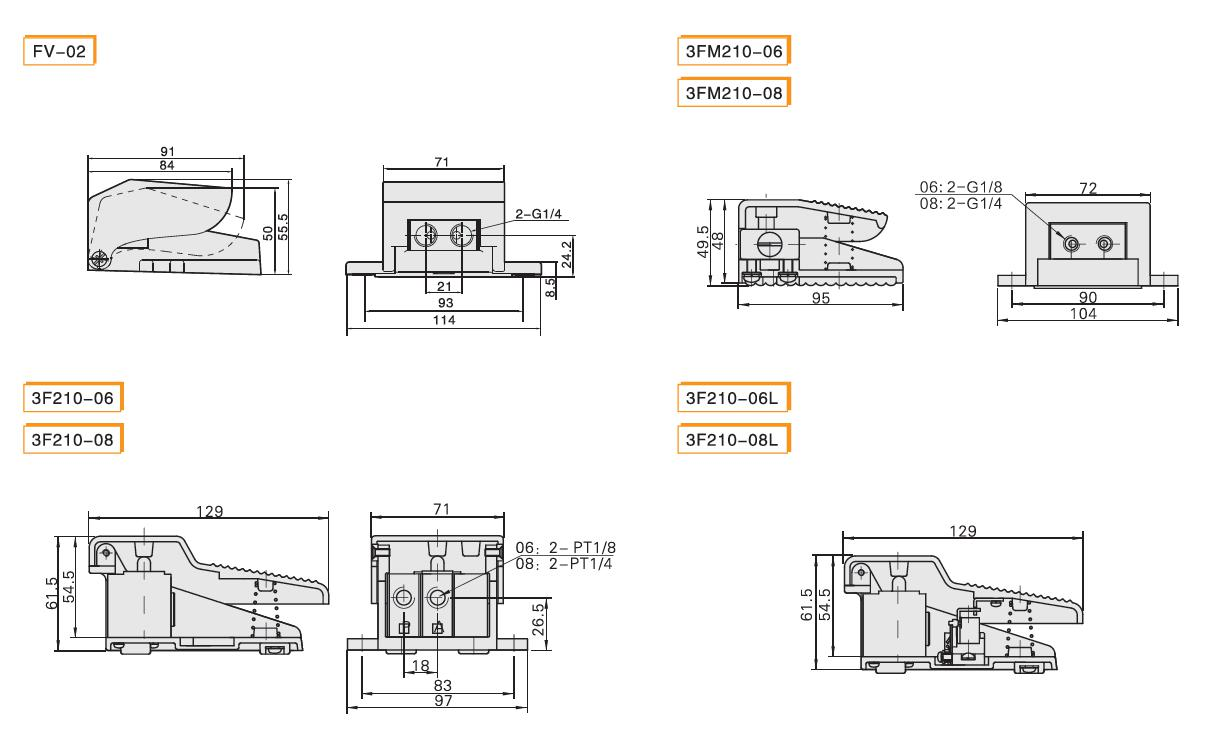

Overall Dimension(mm)
