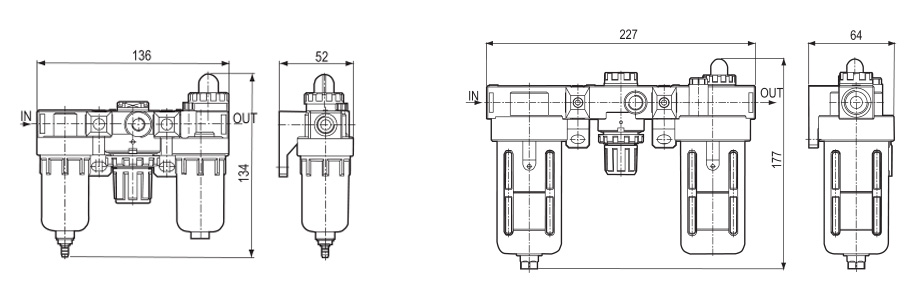

Overall Dimension
Product Feature
1. The structure is delicate and compact, which is convenient for installation and application .

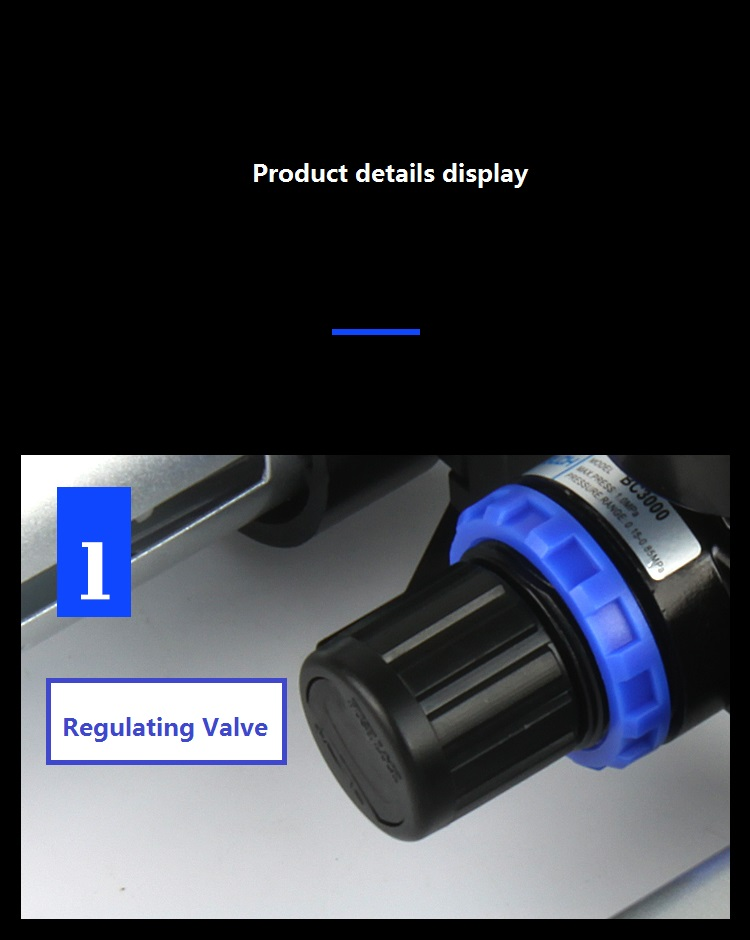

2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3.The pressure loss is low and efficiency of water separating is high.
4.The quantity of oil dripping can be directly observed through transparent check-dome.
Ordering code
| AC | 2000 |
| model | Port size |
| AC F.R.L combination | 2000: 1/4″ |
| BC F.R.L combination | 2000 : 1/4″ |
| 3000 : 3/8″ | |
| 4000 : 1/2″ |
Specification
| Model | AC2000 | BC2000 | BC3000 | BC4000 | |
| Components | Filter | AF2000 | BF2000 | BF3000 | BF4000 |
| Regulator | AR2000 | BR2000 | BR3000 | BR4000 | |
| Lubricator | AL2000 | BL2000 | BL3000 | BL4000 | |
| Port size Rc(G) | 1/4″ | 1/4″ | 3/8″ | 1/2″ | |
| Max. Flow L/min(ANR) | 650 | 1400 | 1400 | 1400 | |
| Working pressure Range | 0.15-0.85Mpa | ||||
| Max pressure (Mpa) | 1.0 MPa | ||||
| Ambient temperature | -5~60℃ | ||||

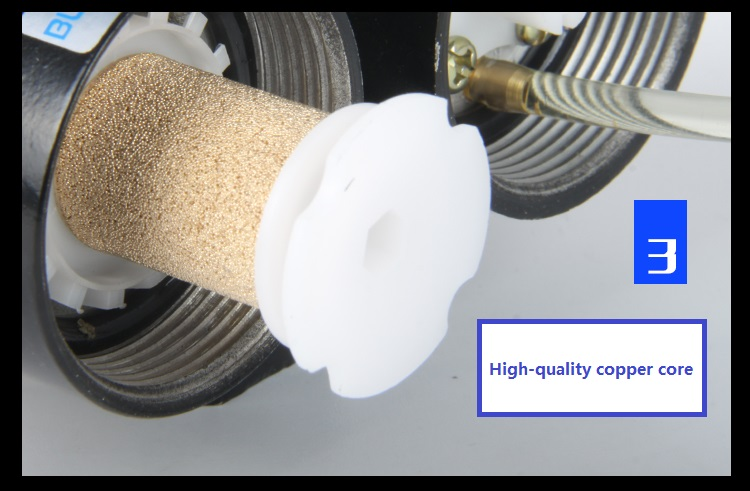

| Filter accuracy | 40um ( standard) 5um (option) | ||||
| Recommended oil: | Turbine NO.1 oil (ISOVG32) | ||||
| Material of main part | Body | Aluminum alloy | |||
| Bowl | PC | ||||
| Bowl guard | AC2000 : without , BC2000 BC3000 BC4000: With (Iron) | ||||
