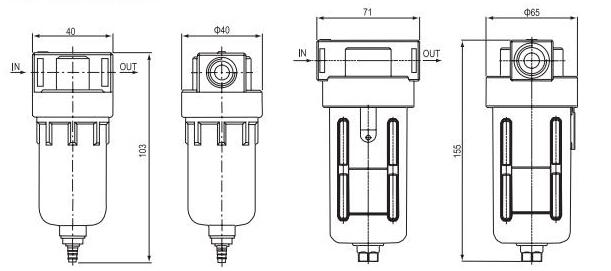

Overall Dimension
Product Feature
1. The structure is delicate and compact, which is convenient for installation and application .
2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
Ordering code
| AF | 2000 |
| model | Port size |
| AF Air Filter | 2000: 1/4″ |
| BF Air Filter | 2000 : 1/4″ |
| 3000 : 3/8″ | |
| 4000 : 1/2″ |
Specification
| Model | AF2000 | BF2000 | BF3000 | BF4000 | |
| Port size Rc(G) | 1/4″ | 1/4″ | 3/8″ | 1/2″ | |
| Max. Flow L/min(ANR) | 650 | 1400 | 1400 | 1400 | |
| Working pressure Range | 0.15-0.85Mpa | ||||
| Max pressure (Mpa) | 1.0 MPa | ||||
| Ambient temperature | -5~60℃ | ||||
| Filter accuracy | 40um ( standard) 5um (option) | ||||
| Material of main part | Body | Aluminum alloy | |||
| Bowl | PC | ||||
| Bowl guard | AF2000 : without , BF2000 BF3000 BF4000: With (Iron) | ||||
