Air preparation LOE series Air Lubricator

loading

Share to:
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works聽, Energy & Mining, Food & Beverage Shops, Advertising Company
Weight (KG): 0.1
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Type: Source Treatment Unit, Air Filter Regulator
Place of Origin: Zhejiang, China
Brand Name: BLCH or OEM
Material: Aluminum Alloy, Aluminum Alloy
Product name: pneumatic lubricator
Suitable gas: Air
Application: Industrial
Color: Grey or OEM
Port size: 1/8'' 1/4" 3/8''
Fluid: Compressed Air
Body Material: Aluminum Die-casting
Working medium: Air Water Oil Gas
Condition: New
Warranty: 2 years
Aluminum Surface is polished and hard anodized.
Availability:
Inquire

    Specification

    Model

    Port size
    Rc(G)

    Max. Flow
    Lymin(ANR)

    Min. Fog flow
    IVmin

    Working pressure Range

    MPa

    Options/Description

    LOE-MINI

    1/8″

    1300

    3

    0.15〜1.2

    Environment current temperature: 5~60′C

    Recommended oil: Turbine oil No. ISOVG32

    1/4″

    2300

    3/8″

    2700

    LOE-MIDI

    1/4″

    2800

    8

    3/8u

    5500

    1/2″

    6100

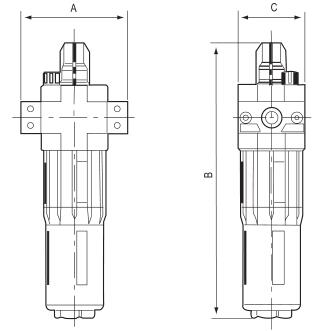

    Overall Dimension(mm)

    014

    TYPE

    A

    B

    C

    FRC-MIDI-02

    85

    208

    55

    FRC-MIDI-03

    FRC-MIDI-04

    FRC-MINI-01

    64

    169

    40

    FRC-MINI-02

    FRC-MINI-03
