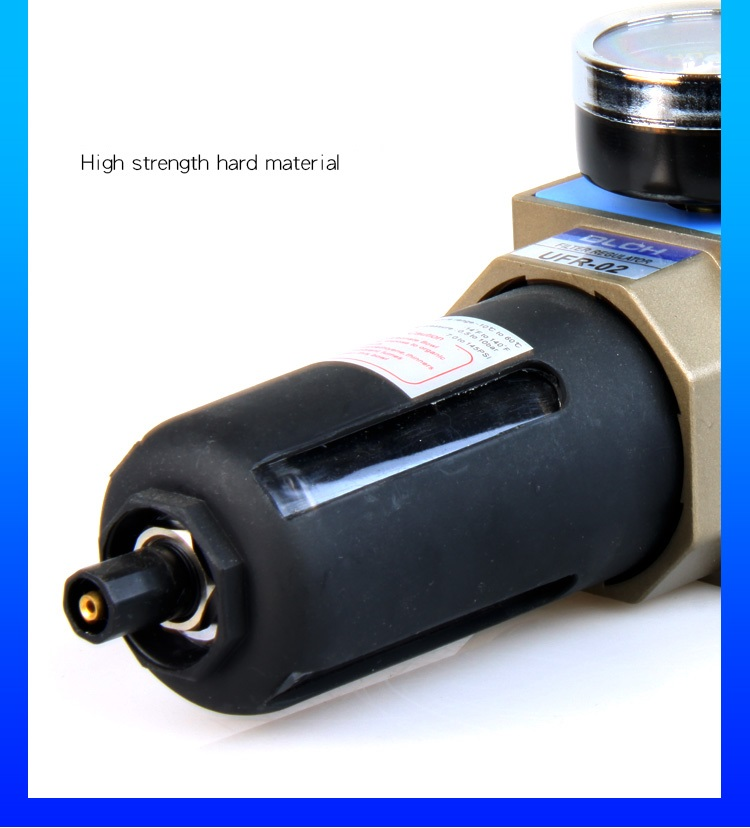

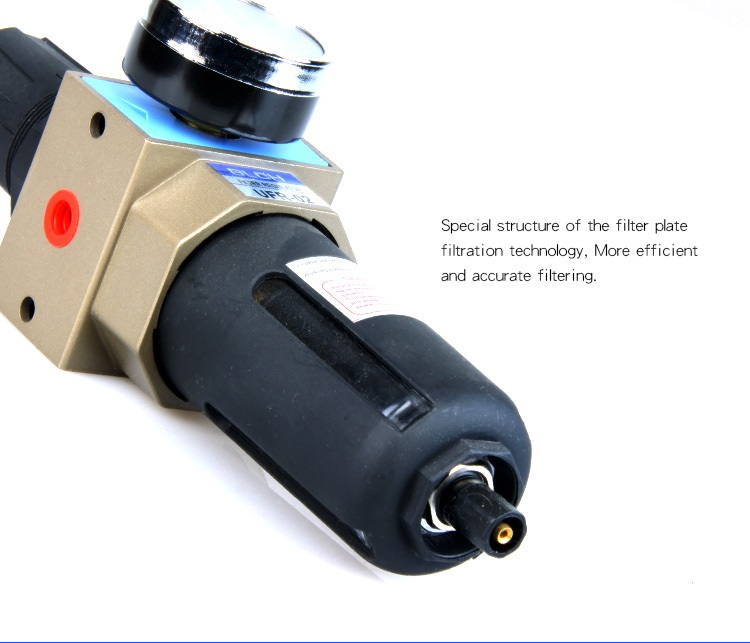

Air preparation UFR series Filter-regulator

loading

Share to:
  • Remove water and particle effectively.
  • 40µm and 5µm filter element are easily interchangeable and replaceable.
  • Accurate and easy pressure setting.
Availability:
Inquire

    O1CN01RUW2ts1OEjVnbVkq5_!!2200642471674

    O1CN01XA2cXJ1OEjVf0QRTx_!!2200642471674

    O1CN01uqMl4t1OEjVn78pcd_!!2200642471674







    Product feature:



    • Remove water and particle effectively.

    • 40μm and 5μm filter element are easily interchangeable and replaceable.

    • Accurate and easy pressure setting.

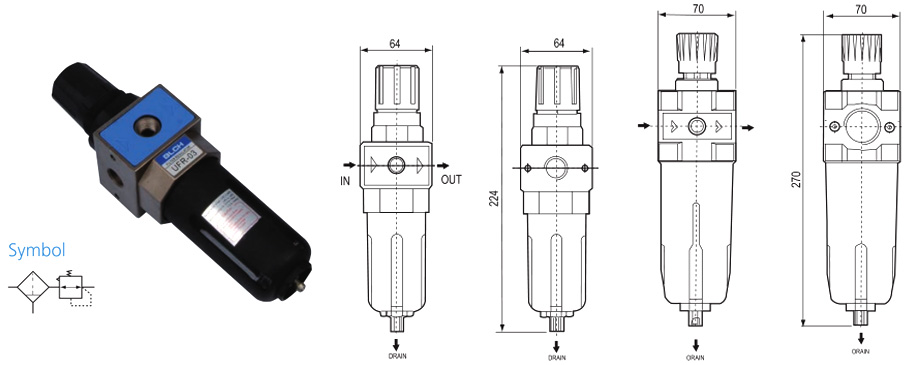

    overall Dimension(mm)

    UFR series Filter-regulator

    Specification

    Model

    Port size Rc(G)

    Filter accuracy

    Max. Flow

    L/min(ANR)

    Working pressure range MPa

    Options/Description

    UFR-02

    1/4″

    40μm

    2080

    0.15~0.85

    		 Differential pressure drain type (Standard type)-D automatic drain typeEnvironment current temperature: 5~60℃

    UFR-03

    3/8″

    2100

    UFR-04

    1/2″

    2600

    UFR-06

    3/4″

    7940

    UFR-08

    1″

    8200
