MGP Series New Thin Rod Cylinder

Share to:

1.MGP Series Air Cylinders.
2.Equivalent to SMC MGP Series Air Cylinders, with the same appearance.
With guide rod..
3.Bore size(mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100.
4.Double acting, Single rod
5.Rubber bumper.
6.Built-in magnet is standard.

Availability:


Inquire

Product Description

Condition: New

Warranty: 1 Year

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops, Other, Advertising Company

Weight (KG): 3

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Type: Cylinder

Place of Origin: Zhejiang, China

Brand Name: BLCH

Material: NBR

Working medium: compressed air

Working pressure: 0.1-1.0MPa

Proof pressure: 1.5MPa

Working temperature: -5-70 degree

Cushion: adjustable cushion

Speed range: 50-1000mm/s

bore range: 12-100mm

Ordering Code

MODEL:	MPGM25x300

MPG	M	25×300
Series code	M: slide bearing	bore size X stroke
	L: ball bearing

Auto switch

Bore size

Mode

100

Auto switch

D-Z73

Specification

Bore size	12	16	20	25	32	40	50	63	80	100
working fluid	air (dean air filtered through 40μm filter element)
acting type	Double acting
Max operating pressure	1.0Mpa
Min operating pressure	0.12Mpa		0.1Mpa
Ambient and Fluid Temperature	-10~60℃(unfrozen)
Piston speed	50-1000mm/s
Cushion	both end rubber cushion
Stroke tolerance	0+1.5
With oil	don’t need
Bearing	slide bearing /ball bearing
Piston rod no	±0.08°		±0.07°		±0.06°		±0.05°		±0.05°
rotary accuracy	±0.10°		±0.09°		± 0.08°		±0.06°		±0.06°
port size	M5x0.8		1/8				1/4		3/8
body material	Aluminum alloy

Cylinder stroke

Bore size	Standard Stroke
12	10 20 30 40 50 100
16	10 20 30 40 50 100 125 150 175 200
20	20 30 40 50 75 125 150 175 200 250 300
25	20 30 40 50 75 125 150 175 200 250 300
32	25 50 75 100 125 150 175 200 250 300
40	25 50 75 100 125 150 175 200 250 300
50	25 50 75 100 125 150 175 200 250 300
63	25 50 75 100 125 150 175 200 250 300
80	25 50 75 100 125 150 175 200 250 300 350 400
100	25 50 75 100 125 150 175 200 250 300 350 400

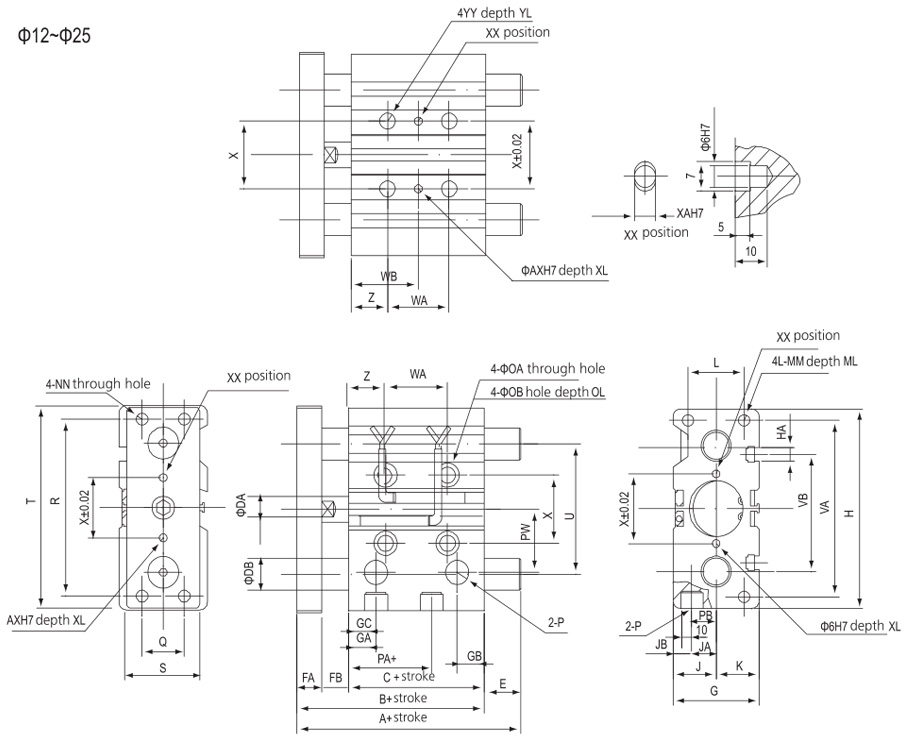

Overall Dimension

MGPM, MGPL Dimension

Bore size (mm)	Stroke(mm)	B	C	DA	FA	FB	G	GA	GB	H	HA	J	K	L	MM	ML	NM	OA	OB	OL	P	PA	PB	PW
12	10,20,30,40,50,75,100,125,	42	29	6	8	5	26	11	7.5	58	M4	13	13	18	M4x0.7	10	M4x0.7	4.3	8	4.5	M5x0.8	13	8	18
16	150,175,200,250	46	33	8	8	5	30	11	8	65	M4	15	15	22	M5x0.8	12	M5x0.8	4.3	8	4.5	M5x0.8	15	10	19
20	20,30,40,50,75,100,125,150,	53	37	10	10	6	36	10,5	8.5	83	M5	18	18	24	M5x0.8	13	M5x0.8	5.6	9.5	5.5	1/8	12.5	10.5	25
25	175,200,250,300,350,400	53.5	37.5	12	10	6	42	11.5	9	93	M5	21	21	30	M6x1.0	15	M6x1.0	5.6	9.5	5.5	1/8	12.5	13.5	28.5

Bore size (mm)	R	S	T	U	VA	VB	WA					WB					X	XA	XB	XC	XL	YY	YL	Z
Bore size (mm)	R	S	T	U	VA	VB	30st or less	30st~ 100st	100st~200st	200st~300st	over300st	30st or less	30st~100st	100st~200st	200st~300st	over300st	X	XA	XB	XC	XL	YY	YL	Z
12	48	22	56	41	50	37	20	40	110	200	-	15	25	60	105	-	23	3	3.5	3	6	M5x0.8	10	5
16	54	25	62	46	56	38	24	44	110	200	-	17	27	60	105	-	27	3	3.5	3	6	M5x0.8	10	5
20	70	30	81	54	72	44	24	44	120	200	300	29	39	77	117	167	28	3	3.5	3	6	M6x1.0	12	17
25	78	38	91	64	82	55	24	44	120	200	300	29	39	77	117	167	34	4	4.5	3	6	M6x1.0	12	17

MGPM(slide bearing) A,DB,E								MGPL(slide bearing) A,DB,E
Bore size(mm)	A			DB	E			Bore size(mm)	A			DB	E
Bore size(mm)	50st or less	50st~100st	over 100st	DB	50st or less	50st~100st	over 100st	Bore size(mm)	50st or less	50st~100st	over 100st	DB	50st or less	50st~100st	over 100st
12	42	60.5	60.5	8	0	18.5	43	12	43	55	85	6	1	13	43
16	46	64.5	64.5	10	0	18.5	49	16	49	65	95	8	3	19	49

MGPM(slide bearing )A,DB,E								MGPL(slide bearing) A,DB,E
Bore size (mm)	A			DB	E Bore size (mm)			Bore size (mm)	A				DB	E
Bore size (mm)	50st or less	50st~ l00st	over 100st	DB	50st or less	50st~100st	over 100st	Bore size (mm)	30st or less	30st~100st	100st~200st	over 200st	DB	30st or less	30st~100st	100st~200st	over 200st
12	53	84.5	122	12	0	31.5	69 12	12	63	80	104	122	10	10	27	51	69
16	53.5	85	122	16	0	31.5	68.5 16	16	69.5	85.5	104.5	122	13	10	32	51	68.5
