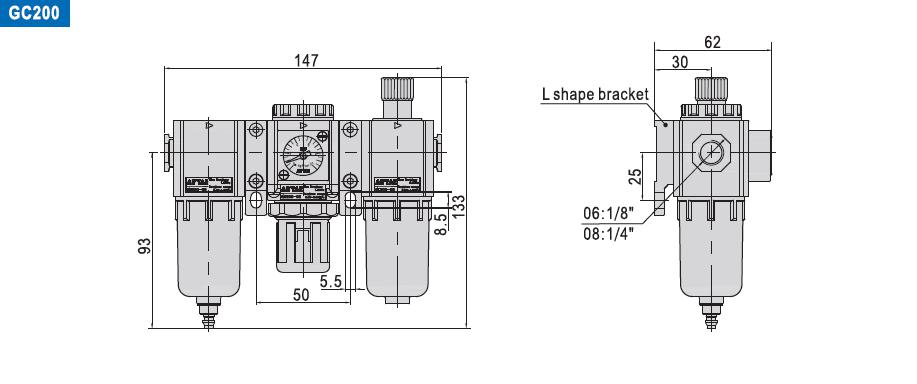

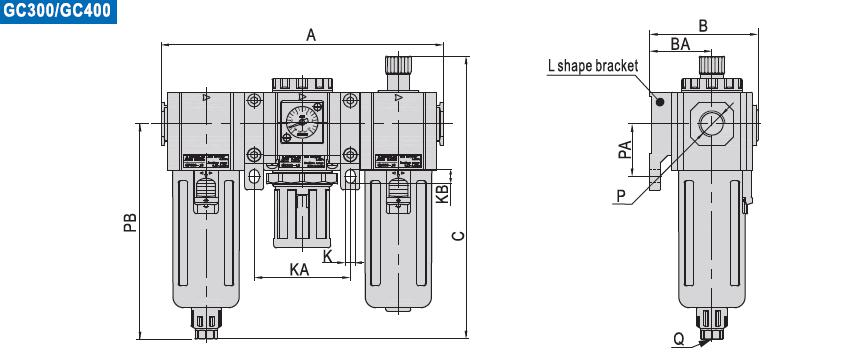

Overall Dimension(mm)
| Model | A | B | BA | C | K | KA | KB | P | PA | PB | Q |
| GC200-06 | 147 | 62 | 30 | 133 | 5.5 | 50 | 8.5 | PT1/8 | 25 | 93 | |
| GC200-08 | 147 | 62 | 30 | 133 | 5.5 | 50 | 8.5 | PT1/4 | 25 | 93 | |
| GC300-08 | 188 | 72 | 41.5 | 188 | 6.5 | 64 | 9 | PT1/4 | 35 | 143 | G1/8 |
| GC300-10 | 188 | 72 | 41.5 | 188 | 6.5 | 64 | 9 | PT3/8 | 35 | 143 | G1/8 |
| GC300-15 | 188 | 72 | 41.5 | 188 | 6.5 | 64 | 9 | PT1/2 | 35 | 143 | G1/8 |
| GC400-10 | 248 | 89 | 50 | 216 | 8.6 | 84 | 12 | PT3/8 | 40 | 166.5 | G1/4 |
| GC400-15 | 248 | 89 | 50 | 216 | 8.6 | 84 | 12 | PT1/2 | 40 | 166.5 | G1/4 |
Product Feature
1.Quick and reliable mounting clamps makes it convenient to install and use .
2.The performance of pressure adjustment is reliable with high precision.
3.The efficiency of eliminating moisture and solid grain is high.
4.Oil dripping adopts gas seal structure,which makes the adjustment of oil supply more reliable.
Ordering code
| MODEL: | GC300-10 | |||
| G | C | 300 | _ | 10 |
| Series code | Funcation | Body size | Port size | |
| F. R.L | 200 | 06: 1/8 | ||
| combination | 300 | 08: 1/4 | ||
| 400 | 10：3/8 | |||
| 15: 1/2 | ||||
Specification
| Model | GC200-06 | GC200-08 | GC300-08 | GC300-10 | GC300-15 | GC400-10 | GC400-15 | |
| Components | Filter | GF200 | GF200 | GF300 | GF300 | GF300 | GF400 | GF400 |
| Regulator | GR200 | GR200 | GR300 | GR300 | GR300 | GR400 | GR400 | |
| Lubricator | GL200 | GL200 | GL300 | GL300 | GL300 | GL400 | GL400 | |
| Port size PT | 1/8″ | 1/4″ | 1/4″ | 3/8″ | 1/2″ | 3/8″ | 1/2″ | |
| Max. Flow L/min(ANR) | 3000 | 3000 | 4500 | 4500 | 4500 | 6500 | 6500 | |
| Working pressure Range | 0.15-0.9 Mpa | |||||||
| Max pressure (Mpa) | 1.0 MPa | |||||||
| Ambient temperature | -5~60℃ | |||||||
| Filter accuracy | 40um ( standard) 5um (option) | |||||||
| Recommended oil: | Turbine NO.1 oil (ISOVG32) | |||||||
| Material of main part | Body | Aluminum alloy | ||||||
| Bowl | PC | |||||||
| Bowl guard | GC200 : without , GC300~ GC400: With (Iron) | |||||||
