Air source treatment units(air treatment com-ponents) are _pneumatic components forfiltering, regulating、 lubricating the com-pressed air, it including air filter air regulator.lubricator, drains, etc.
1.Hand wheel adopts the pressed self-locking mec-hanism to prevent the setting pressure from exter-nal disturbance and unusual action.2.Pressure adjustment mechanism adopts the bala-nce design with more stable adjustment and bettercharacteristic.
3Besides panel-mounting,fixed bracketinstallationis optional.
Main Features:
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution.
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

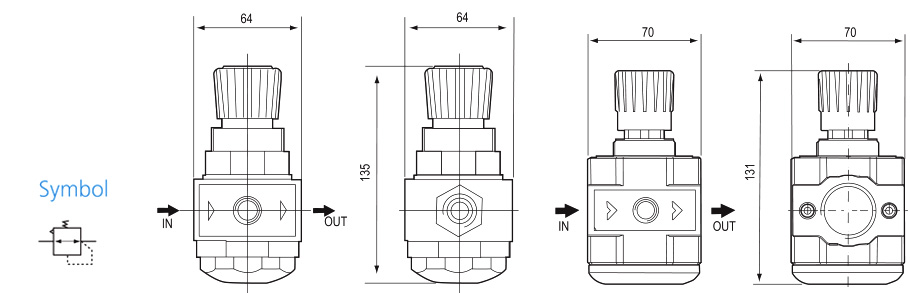

Overall Dimension(mm)
Specification
Model | Port size Rc(G) | Max. Flow L/min(ANR) | Working pressure range MPa | Options/Description |
UR-02 | 1/4″ | 2100 | 0.15~0.85 | Differential pressure drain type (Standard type)-D automatic drain typeEnvironment currenttemperature: 5~60℃ |
UR-03 | 3/8″ | 2130 | ||
UR-04 | 1/2″ | 2750 | ||
UR-06 | 3/4″ | 8000 | ||
UR-08 | 1″ | 8500 |
