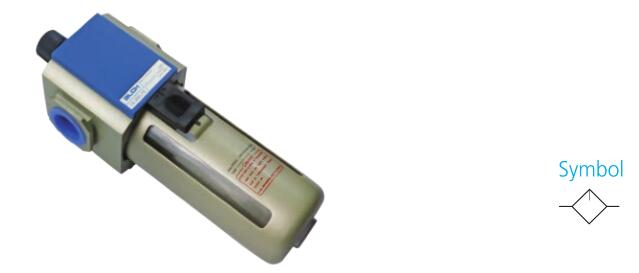

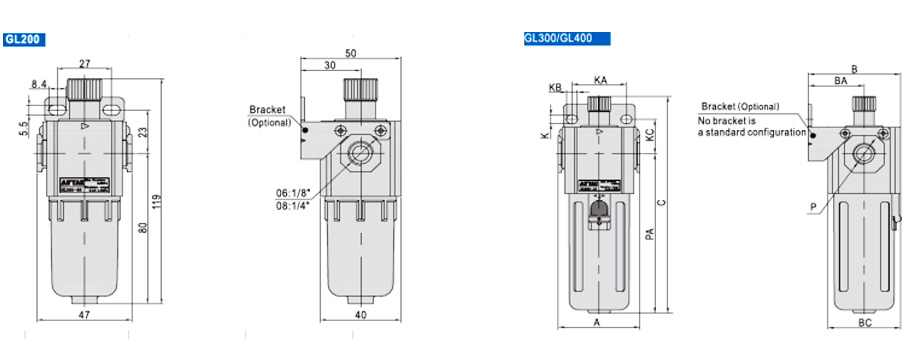

Overall Dimension(mm)
| Model | A | B | BA | BC | C | K | KA | KB | KC | P | PA |
| GL2 00-06 | 47 | 50 | 30 | 40 | 119 | 5.5 | 27 | 15.5 | 23 | PT1/8 | 80 |
| GL200-08 | 47 | 50 | 30 | 40 | 119 | 5.5 | 27 | 15.5 | 23 | PT1/4 | 80 |
| GL300-08 | 60 | 68 | 41 | 53.5 | 169 | 6.5 | 40 | 8 | 27 | PT1/4 | 125 |
| GL300-10 | 60 | 68 | 41 | 53.5 | 169 | 6.5 | 40 | 8 | 27 | PT3/8 | 125 |
| GL300-15 | 60 | 68 | 41 | 53.5 | 169 | 6.5 | 40 | 8 | 27 | PT1/2 | 125 |
| GL400-10 | 80 | 85.5 | 50 | 71 | 190 | 8.5 | 55 | 11 | 33.5 | PT3/8 | 142 |
| GL400-15 | 80 | 85.5 | 50 | 71 | 190 | 8.5 | 55 | 11 | 33.5 | PT1/2 | 142 |
Product Feature
1.The structure of oil dripping adopts gap seal type, which makes the adjustment of oil supply more reliable.
2. Oil feed ring can only make one full turn. The quantity of oil supply basically takes on linear distribution. The quantity of oil supply can be generally calculated according to the positon of graduation ring.
3. Special drip nozzle structure will produce negative pressure in oil dripping outlet and mist flow is minimal.
Ordering code
| MODEL: | GL300-10 | ||||
| G | L | 300 | _ | 10 | |
| Series code | Funcation | Body size | Port size | ||
| Lubricator | 200 | 06: 1/8 | |||
| 300 | 08: 1/4 | ||||
| 400 | 10：3/8 | ||||
| 15: 1/2 | |||||
Specification
| Model | GL200-06 | GL200-08 | GL300-08 | GL300-10 | GL300-15 | GL400-10 | GL400-15 | |
| Port size PT | 1/8″ | 1/4″ | 1/4″ | 3/8″ | 1/2″ | 3/8″ | 1/2″ | |
| Max. Flow L/min(ANR) | 3500 | 3500 | 5000 | 5000 | 5000 | 8000 | 8000 | |
| Lubricator bowl capacity (CC) | 25 | 25 | 75 | 75 | 75 | 160 | 160 | |
| Working pressure Range | 0.15-0.9 Mpa | |||||||
| Max pressure (Mpa) | 1.0 MPa | |||||||
| Ambient temperature | -5~60℃ | |||||||
| Recommended oil: | Turbine NO.1 oil (ISOVG32) | |||||||
| Material of main part | Body | Aluminum alloy | ||||||
| Bowl | PC | |||||||
| Bowl guard | GL200 : without , GL300~ GL400: With (Iron) | |||||||
