Air preparation AC series FR.L combination

loading

Share to:
Availability:
Inquire

    Ordering code

    MODEL: AC3010-03D

    A C 3010 _ 03 D
    Series code Funcation Body size
    		Port size Drain model

    		FR.L 1010
    		M5: M5 empty: Differential Pressure Drain

    		combination 2010
    		01: 1/8  & manual Drain ( 2000 size)


    		3010
    		02: 1/4 D: Automatic Drain


    		4010
    		03：3/8


    		5010
    		04: 1/2




    		06：3/4




    		10 : 1″

    Specification

    Model AC1010-M5 AC2010-01 AC2010-02 AC3010-02 AC3010-03 AC4010-03 AC4010-04 AC4010-06 AC5010-06 AC5010-10
    AC1010-M5D AC2010-01D AC2010-02D AC3010-02D AC3010-03D AC4010-03D AC4010-04D AC4010-06D AC5010-06D AC5010-10D
    Components Filter-Regulator AW1000 AW2000 AW2000 AW3000 AW3000 AW4000 AW4000 AW4000 AW5000 AW5000
    Lubricator AL1000 AL2000 AL2000 AL3000 AL3000 AL4000 AL4000 AL4000 AL5000 AL5000
    Port size   Rc(G) M5 x 0.8 1/8″ 1/4″ 1/4″ 3/8″ 3/8″ 1/2″ 3/4″ 3/4″ 1″
    Pressure gauge port size M5 x 0.8 1/8″ 1/8″ 1/8″ 1/8″ 1/4″ 1/4″ 1/4″ 1/4″ 1/4″
    Pressure gauge Y20 Y40 Y40 Y40 Y40 Y50 Y50 Y50 Y50 Y50
    Max. Flow L/min(ANR) 90 500 500 1700 1700 3000 3000 3000 5000 5000
    Working pressure Range 0.15-0.7 Mpa 0.15-0.85 Mpa
    Max pressure (Mpa) 1.0 MPa
    Ambient  temperature  - 5~60℃
    Filter accuracy 40um ( standard)   5um (optional)
    Recommended oil: Turbine NO.1 oil (ISOVG32)
    Material of main part Body  Aluminum alloy
    Bowl PC
    Bowl guard  AC1010~ AC2010 : without  ,  AC3010~ AC5010:  With (Iron)

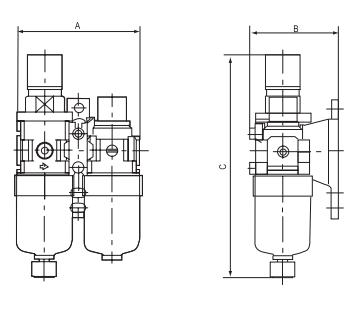

     Overall Dimension

    AC series FR.L combination Model A C B
    AC1010-M5 56 108 41
    AC2010-01/02 95 165 50
    AC3010-02/03 117 207 67
    AC4010-03/04 153 259 85
    AC4010-06 165 265 86
    AC5010-06/10 193 339 112
    AC1010-M5D 56 124 41
    AC2010-01/02D 95 180 50
    AC3010-02/03D 117 242 67
    AC4010-03/04D 153 275 85
    AC4010-06D 165 278 86
    AC5010-06/10D 193 354 112
