Ordering code

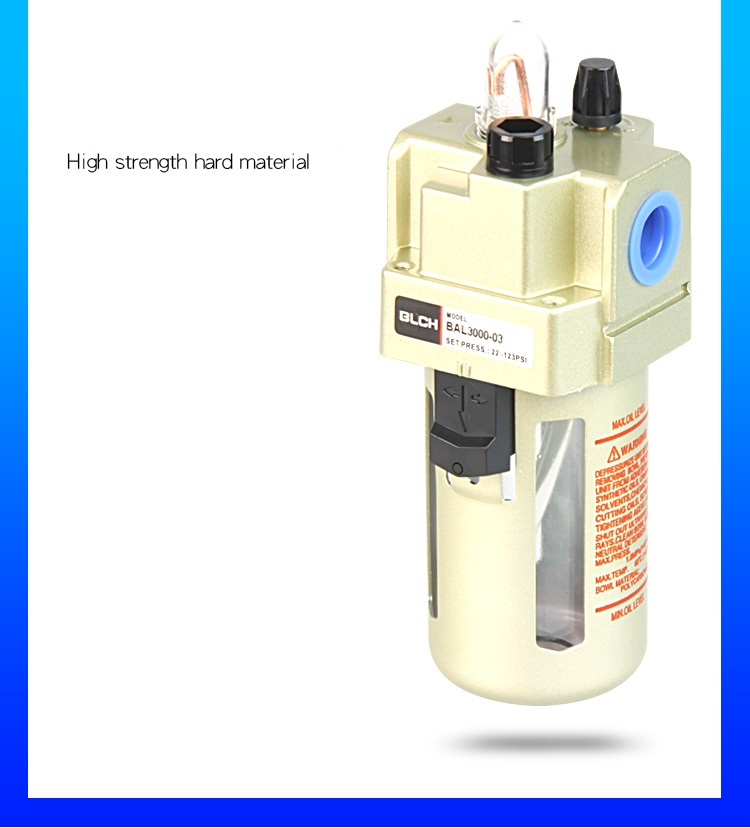

| MODEL: | AL3000-03 | ||||
| A | L | 3000 | _ | 03 | |
| Series code | Funcation | Body size | Port size | ||
| Lubricator | 1000 | M5: M5 | |||
| 2000 | 01: 1/8 | ||||
| 3000 | 02: 1/4 | ||||
| 4000 | 03：3/8 | ||||
| 5000 | 04: 1/2 | ||||
| 06：3/4 | |||||
| 10 : 1″ | |||||
Specification
| Model | AL1000-M5 | AL2000-01 | AL2000-02 | AL3000-02 | AL3000-03 | AL4000-03 | AL4000-04 | AL4000-06 | AL5000-06 | AL5000-10 | |
| Port size Rc(G) | M5 x 0.8 | 1/8″ | 1/4″ | 1/4″ | 3/8″ | 3/8″ | 1/2″ | 3/4″ | 3/4″ | 1″ | |
| Max. Flow L/min(ANR) | 90 | 500 | 500 | 2000 | 2000 | 4000 | 4000 | 4500 | 5000 | 5000 | |
| Working pressure Range | 0.15-0.7 Mpa | 0.15-0.85 Mpa | |||||||||
| Max pressure (Mpa) | 1.0 MPa | ||||||||||
| Ambient temperature | - 5~60℃ | ||||||||||
| Filter accuracy | 40um ( standard) 5um (optional) | ||||||||||
| Recommended oil: | Turbine NO.1 oil (ISOVG32) | ||||||||||

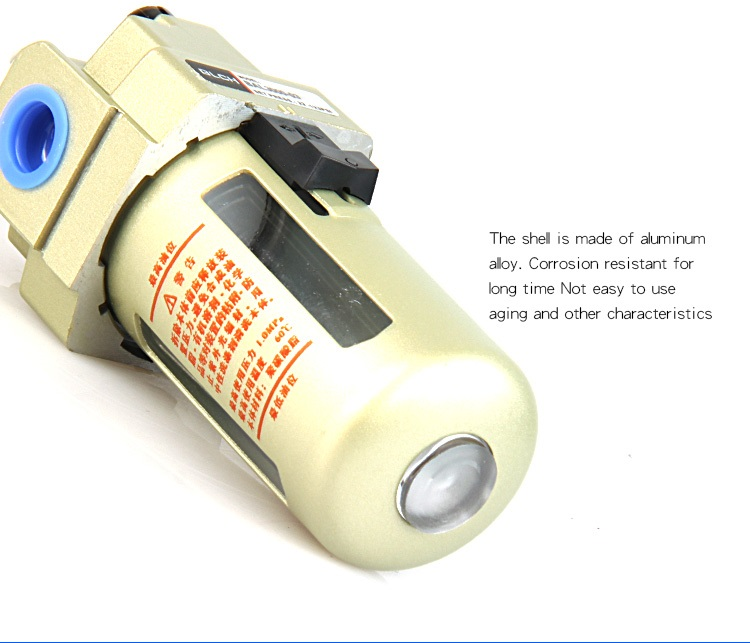

| Material of main part | Body | Aluminum alloy | |||||||||
| Bowl | PC | ||||||||||
| Bowl guard | AL1000~ AL2000 : without , AL3000~ AL5000: With (Iron) | ||||||||||
Overall Dimension
 | Model | A | B | C |
| AL1000-M5 | 25 | 77 | 25 | |
| AL2000-01/02 | 40 | 120 | 40 | |
| AL3000-02/03 | 53 | 142 | 53 | |
| AL4000-03/04 | 70 | 173 | 70 | |
| AL4000-06 | 75 | 178 | 70 | |
| AL5000-06/10 | 90 | 250 | 90 |
