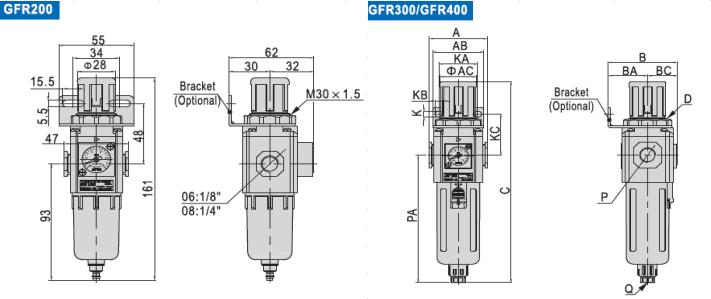

Overall Dimension(mm)
| Model | A | AB | AC | B | BA | BC | C | D | K | KA | KB | KC | P | PA | Q |
| GFR200-06 | 47 | 55 | 28 | 62 | 30 | 32 | 161 | M30x1.5 | 5.5 | 34 | 15 | 48 | PT1/8 | 93 | |
| GFR200-08 | 47 | 55 | 28 | 62 | 30 | 32 | 161 | M30x1.5 | 5.5 | 34 | 15 | 48 | PT1/4 | 93 | |
| GFR300-08 | 60 | 53 | 38 | 72 | 41 | 31 | 225.5 | M40x1.5 | 6.5 | 40 | 8 | 46 | PT1/4 | 143 | G1/8 |
| GFR300-10 | 60 | 53 | 38 | 72 | 41 | 31 | 225.5 | M40x1.5 | 6.5 | 40 | 8 | 46 | PT3/8 | 143 | G1/8 |
| GFR300-15 | 60 | 53 | 38 | 72 | 41 | 31 | 225.5 | M40x1.5 | 6.5 | 40 | 8 | 46 | PT1/2 | 143 | G1/8 |
| GFR400-10 | 80 | 72 | 52 | 90 | 50 | 40 | 270.5 | M55x2.0 | 8.5 | 55 | 11 | 53 | PT3/8 | 166.5 | G1/4 |
| GFR400-15 | 80 | 72 | 52 | 90 | 50 | 40 | 270.5 | M55x2.0 | 8.5 | 55 | 11 | 53 | PT1/2 | 166.5 | G1/4 |
Product Feature
1.Embedded square pressure gauge is used to save installation space.
2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3.Balanced design is adopted for the pressure adjustment mechanism .
4.The filtering grade includes 5um and 40 um (optional).
Ordering code
| MODEL: | GFR300-10 | |||
| G | FR | 300 | _ | 10 |
| Series code | Funcation | Body size | Port size | |
| Filter | 200 | 06: 1/8 | ||
| Regulator | 300 | 08: 1/4 | ||
| 400 | 10：3/8 | |||
| 15: 1/2 | ||||
Specification
| Model | GFR200-06 | GFR200-08 | GFR300-08 | GFR300-10 | GFR300-15 | GFR400-10 | GFR400-15 | |
| Port size PT | 1/8″ | 1/4″ | 1/4″ | 3/8″ | 1/2″ | 3/8″ | 1/2″ | |
| Max. Flow L/min(ANR) | 3000 | 3000 | 4500 | 4500 | 4500 | 6500 | 6500 | |
| Working pressure Range | 0.15-0.9 Mpa | |||||||
| Max pressure (Mpa) | 1.0 MPa | |||||||
| Ambient temperature | -5~60℃ | |||||||
| Filter accuracy | 40um ( standard) 5um (optional ) | |||||||
| Material of main part | Body | Aluminum alloy | ||||||
| Bowl | PC | |||||||
| Bowl guard | GFR200 : without , GFR300~ GFR400: With (Iron) | |||||||
