Air preparation AC series F.R.L combination

loading

Share to:
Availability:
Inquire

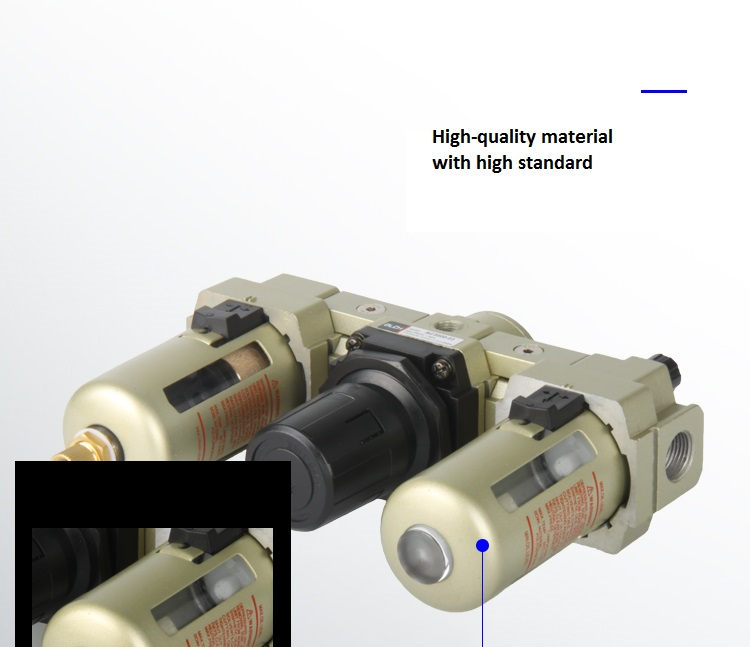

    O1CN012OFHt01OEjbhJ8lKA_!!2200642471674

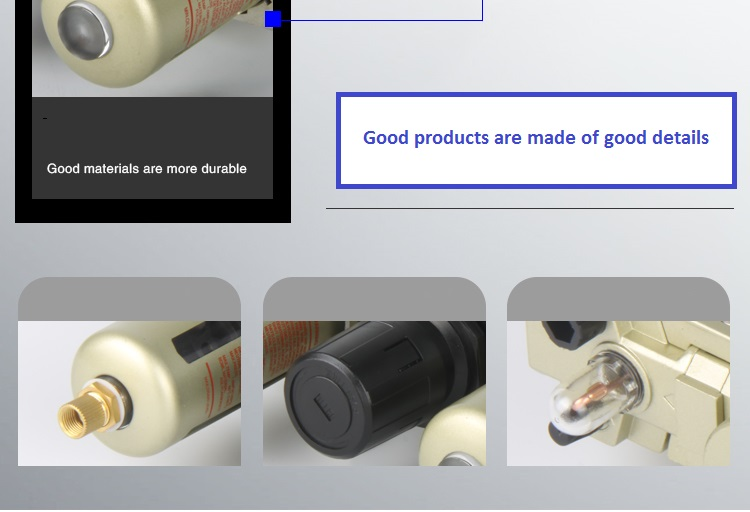

    O1CN01VUAgVv1OEjbeZ3Kon_!!2200642471674

    Ordering code

    MODEL: AC3000-03D

    A C 3000 _ 03 D
    Series code Funcation Body size
    		Port size Drain model

    		F. R.L 1000
    		M5: M5 Blank : Differential Pressure Drain

    		combination 2000
    		01: 1/8 & manual Drain ( 2000 size)


    		3000
    		02: 1/4 D: Automatic Drain


    		4000
    		03：3/8


    		5000
    		04: 1/2




    		06：3/4




    		10 : 1″

    Specification

    Model AC1000-M5 AC2000-01 AC2000-02 AC3000-02 AC3000-03 AC4000-03 AC4000-04 AC4000-06 AC5000-06 AC5000-10
    AC1000-M5D AC2000-01D AC2000-02D AC3000-02D AC3000-03D AC4000-03D AC4000-04D AC4000-06D AC5000-06D AC5000-10D
    Components Filter AF1000 AF2000 AF2000 AF3000 AF3000 AF4000 AF4000 AF4000 AF5000 AF5000
    Regulator AR1000 AR2000 AR2000 AR3000 AR3000 AR4000 AR4000 AR4000 AR5000 AR5000
    Lubricator AL1000 AL2000 AL2000 AL3000 AL3000 AL4000 AL4000 AL4000 AL5000 AL5000
    Port size   Rc(G) M5 x 0.8 1/8″ 1/4″ 1/4″ 3/8″ 3/8″ 1/2″ 3/4″ 3/4″ 1″
    Pressure gauge port size M5 x 0.8 1/8″ 1/8″ 1/8″ 1/8″ 1/4″ 1/4″ 1/4″ 1/4″ 1/4″
    Pressure gauge Y20 Y40 Y40 Y40 Y40 Y50 Y50 Y50 Y50 Y50
    Max. Flow L/min(ANR) 90 500 500 2000 2000 4000 4000 4500 5000 5000
    Working pressure Range 0.15-0.7 Mpa 0.15-0.85 Mpa
    Max pressure (Mpa) 1.0 MPa
    Ambient  temperature  - 5~60℃
    Filter accuracy 40um ( standard)   5um (option)
    Recommended oil: Turbine NO.1 oil (ISOVG32)
    Material of main part Body  Aluminum alloy
    Bowl PC
    Bowl guard  AC1000~ AC2000 : without  ,  AC3000~ AC5000:  With (Iron)

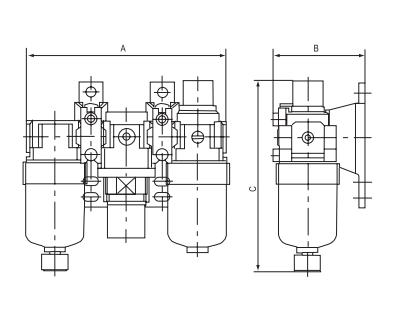

     Overall Dimension

    AC series F.R.L combination Model A C B
    AC1000-M5 87 87 41
    AC2000-01/02 140 118 48
    AC3000-02/03 180 142 68
    AC4000-03/04 238 173 87
    AC4000-06 255 190 85
    AC5000-06/10 300 265 115
    AC1000-M5D 87 104 41
    AC2000-01/02D 140 145 48
    AC3000-02/03D 180 194 68
    AC4000-03/04D 238 205 87
    AC4000-06D 255 210 85
    AC5000-06/10D 300 286 115
