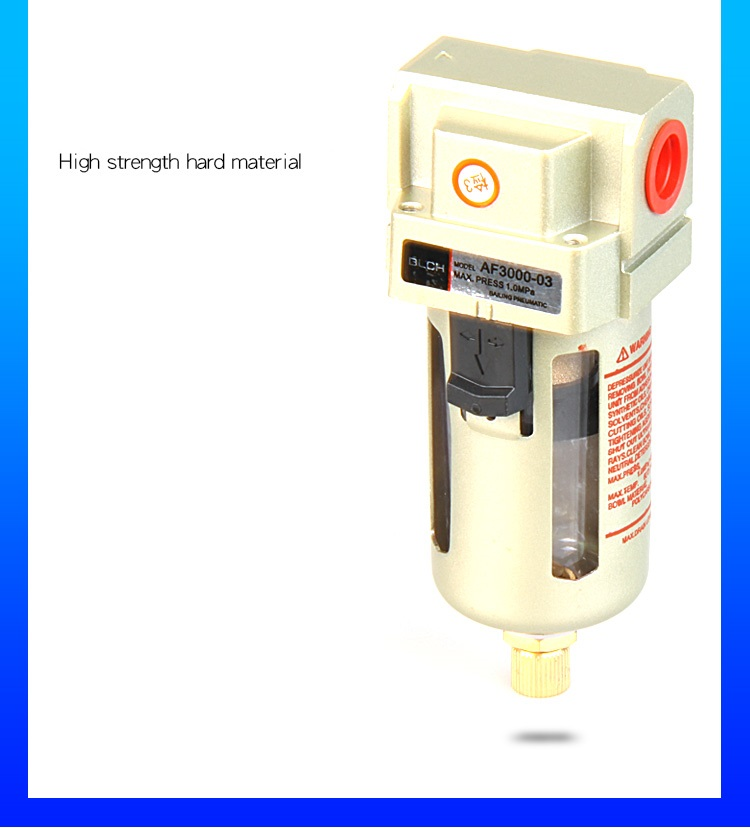

Ordering code
| MODEL: | AF3000-03D | |||||
| A | F | 3000 | _ | 03 | D | |
| Series code | Funcation | Body size | Port size | Drain model | ||
| FILTER | 1000 | M5: M5 | Blank : Differential Pressure Drain | |||
| 2000 | 01: 1/8 | & manual Drain ( 2000 size) | ||||
| 3000 | 02: 1/4 | D: Automatic Drain | ||||
| 4000 | 03：3/8 | |||||
| 5000 | 04: 1/2 | |||||
| 06：3/4 | ||||||
| 10 : 1″ | ||||||
Specification
| Model | AF1000-M5 | AF2000-01 | AF2000-02 | AF3000-02 | AF3000-03 | AF4000-03 | AF4000-04 | AF4000-06 | AF5000-06 | AF5000-10 | |
| AF1000-M5D | AF2000-01D | AF2000-02D | AF3000-02D | AF3000-03D | AF4000-03D | AF4000-04D | AF4000-06D | AF5000-06D | AF5000-10D | ||
| Port size Rc(G) | M5 x 0.8 | 1/8″ | 1/4″ | 1/4″ | 3/8″ | 3/8″ | 1/2″ | 3/4″ | 3/4″ | 1″ | |
| Max. Flow L/min(ANR) | 110 | 750 | 750 | 1500 | 1500 | 4000 | 4000 | 6000 | 7000 | 7000 | |
| Max pressure (Mpa) | 1.0 MPa | ||||||||||
| Ambient temperature | - 5~60℃ | ||||||||||
| Filter accuracy | 40um ( standard) 5um (optional) | ||||||||||
| Material of main part | Body | Aluminum alloy | |||||||||
| Bowl | PC | ||||||||||
| Bowl guard | AF1000~ AF2000 : without , AF3000~ AF5000: With (Iron) | ||||||||||

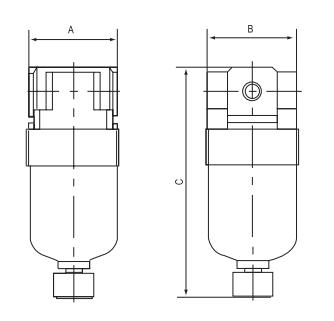

Overall Dimension
 | Model | A | B | C |
| AF1000-M5 | 25 | 69 | 25 | |
| AF2000-01/02 | 40 | 97 | 40 | |
| AF3000-02/03 | 53 | 133 | 53 | |
| AF4000-03/04 | 70 | 170 | 70 | |
| AF4000-06 | 76 | 175 | 70 | |
| AF5000-06/10 | 90 | 248 | 91 | |
| AF1000-M5D | 25 | 86 | 25 | |
| AF2000-01/02D | 40 | 119 | 40 | |
| AF3000-02/03D | 53 | 170 | 53 | |
| AF4000-03/04D | 70 | 184 | 70 | |
| AF4000-06D | 76 | 188 | 70 | |
| AF5000-06/10D | 90 | 262 | 91 |
