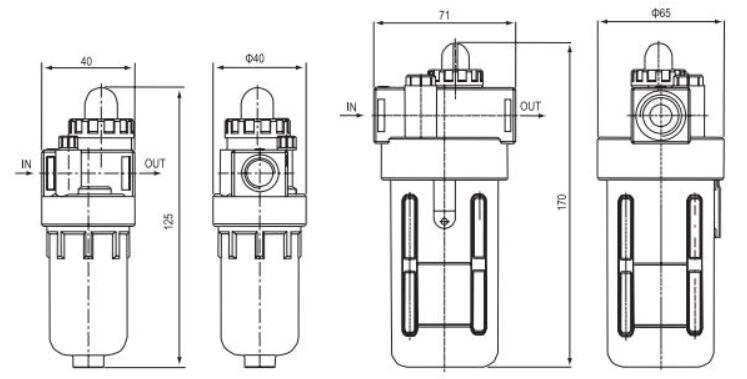

Overall Dimension
Product Feature
1. The structure is delicate and compact, which is convenient for installation and application .
2.The quantity of oil dripping can be directly observed through transparent inspection sheet.
3.The pressure loss and the flow of miststart is low .
Ordering code
| AL | 2000 |
| Model | Port size |
| AL Air Lubricator | 2000: 1/4″ |
| BL Air Lubricator | 2000 : 1/4″ |
| 3000 : 3/8″ | |
| 4000 : 1/2″ |
Specification
| Model | AL2000 | BL2000 | BL3000 | BL4000 | |
| Port size Rc(G) | 1/4″ | 1/4″ | 3/8″ | 1/2″ | |
| Max. Flow L/min(ANR) | 650 | 1400 | 1400 | 1400 | |
| Working pressure Range | 0.15-0.85 Mpa | ||||
| Max pressure (Mpa) | 1.0 MPa | ||||
| Oil bowl capacity | 25 CC | 160 CC | |||
| Ambient temperature | -5~60℃ | ||||
| Filter accuracy | 40um ( standard) 5um (option) | ||||
| Material of main part | Body | Aluminum alloy | |||
