3H/4H series Hand Lever Valve

loading

Share to:
Availability:
Inquire

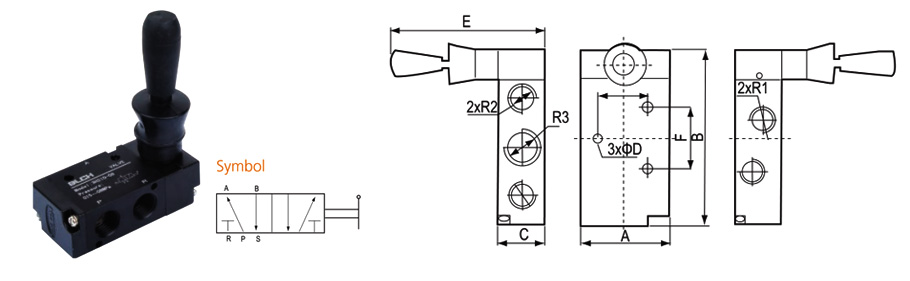

    Overall Dimension(mm)

    3H-4H series Hand Lever Valve

    Model

    ΦD

    A

    B

    C

    E

    F

    J

    R1

    R2

    R3

    4H210-08

    4

    35

    76.3

    22

    94.5

    21

    21

    R1/4

    R1/4

    R3/8

    H310-10

    4

    40

    92

    27

    100

    28

    28

    R3/8

    R3/8

    R3/8

    4H410-15

    5.5

    50

    12.4

    34

    105

    28.2

    34.6

    R3/8

    R3/8

    R3/8

    Order code

    MODEL: 3H210-08
    4H210-08

    3H/4H 2 10  -  08
    3H:2/3 Series Code Position Code10:single anddouble positions
    		Port Size
    3/2 way 1:100 series
    		06:1/8″
    4H:2/5 2:200 series
    		08:1/4″
    5/2 way 3:300 series
    		10:3/8″

    		4:400 series
    		15:1/2″

    Specification

    Model

    3H210-06/08

    4H210-06/08

    3H310-08/10

    4H310-08/10

    3H410-10/15

    4H410-10/15

    Working Fluid

    Air

    Working Mode

    Direct Acting type

    CV Value(mm2)

    16(CV=0.89)

    25(CV=1.4)

    30(CV=1.68)

    Port Size

    1/4″

    3/8″

    1/2″

    Working pressure range

    0~0.8MPa

    Working temperature range

    5~60℃

    Lubricating

    No Need

    Operating Angle

    ±5

    Weight(kg)

    Main Material

    Body

    Aluminum Alloy

    O ring

    NBR
