FV320/420 series Foot Valve

loading

Share to:
The FV320/420 series foot valve is a one-way valve used in pneumatic control systems. They have excellent sealing and durability, and can withstand high pressure and high temperature. These foot operated valves can be opened and closed with a foot pedal, making them ideal for applications requiring limited hand operation. In addition, the FV320/420 series foot valve also has the characteristics of compact design and easy installation, which can be widely used in industrial automation, medical equipment and other fields.
Availability:
Inquire

    1.Aluminum pedal

    2.grain design

    3.effectively prevent skidding

    4.Hard Anodizing/Aluminium alloy valve body

    5.Aluminum body/precision polishing finish

    6.High hardness and stability, thread smooth without burr

    7.Precision polishing finish

    8.High hardness and stability


    Ordering code

    MODEL: FV-320

    FV - 320
    Model
    		port and position
    FV foot valve
    		320: 3/2 way


    		420: 4/2 way

    Specification

    Model FV320 FV420
    Working Fluid Air (to be filtered by 40um filter element)
    Port Size 1/8″ 1/4″
    Port and position 3/2 way 4/2 way
    Working pressure Range 0-0.8MPa (0-114psi)
    Proof Pressure 1.5MPa (215psi)
    Ambient  temperature 0-70℃
    Material of body  Aluminum alloy

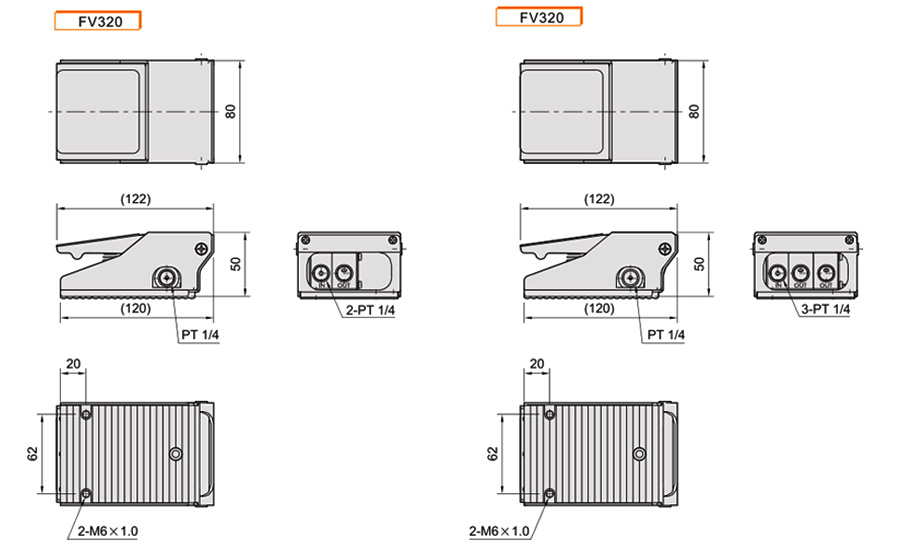

    Overall Dimension(mm)
    FV320
