3A series Air Control ValveFlow Control Valve

loading

Share to:
3A series pneumatic control valve and flow control valve is a kind of valve used in pneumatic control system. They feature compact design, lightweight construction and easy installation. This series of valves can control the flow and direction of gas, and can precisely regulate and control the air pressure in the system. 3A series air control valves and flow control valves are widely used in automation equipment, robot control, compressed air systems and other fields, with good stability and reliability.
Availability:
Inquire

    Specification

    Model

    Port Size Rc(G)

    Switching Mode

    Ways

    Working pressure range MPa

    3A110

    M5

    M5

    Air

    0.15~0.8

    06

    1/8″

    3A120

    M5

    M5

    06

    1/8″

    3A210

    06

    1/8″

    08

    1/4″

    3A220

    06

    1/8″

    08

    1/4″

    3/2 way

    3A310

    08

    1/4″

    10

    3/8″

    3A320

    08

    1/4″

    10

    3/8″

    3A410

    10

    3/8″

    15

    1/2″

    3A420

    10

    3/8″

    15

    1/2″

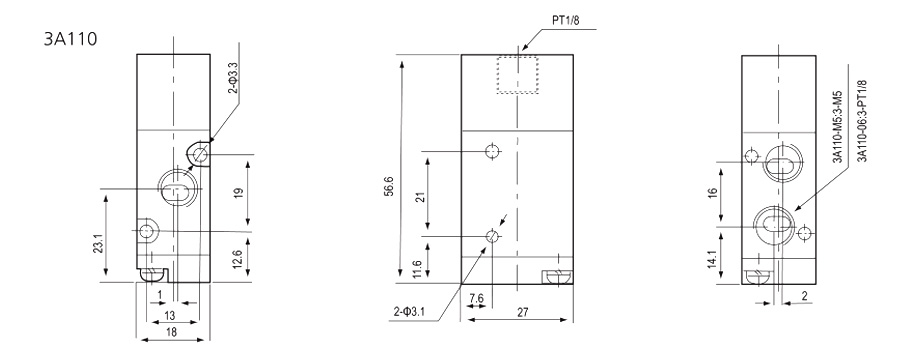

    Overall Dimension(mm)

    3A series Air Control Valve
