3V series Solenoid Valve

loading

Share to:
Availability:
Inquire

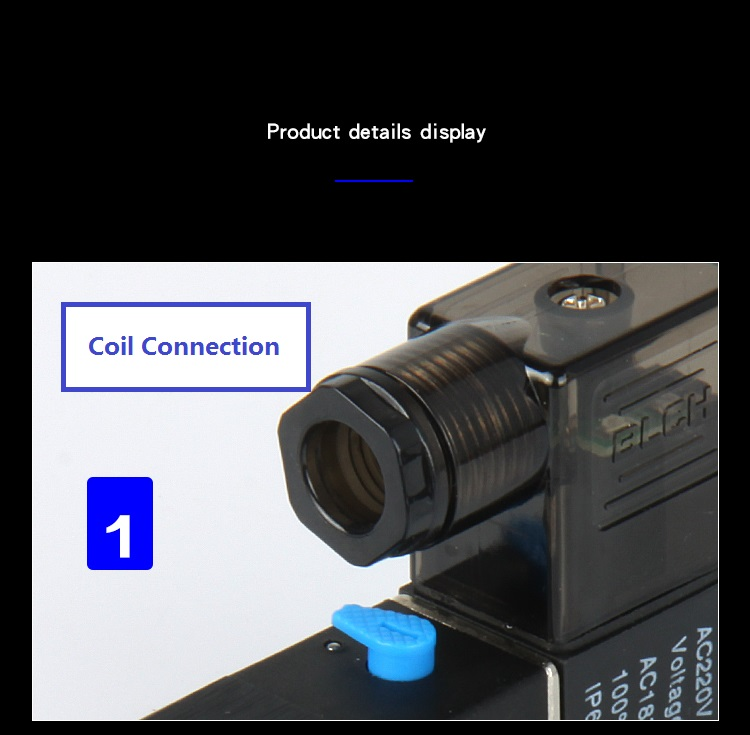

    O1CN01o7napA1OEjXFrF2Hd_!!2200642471674

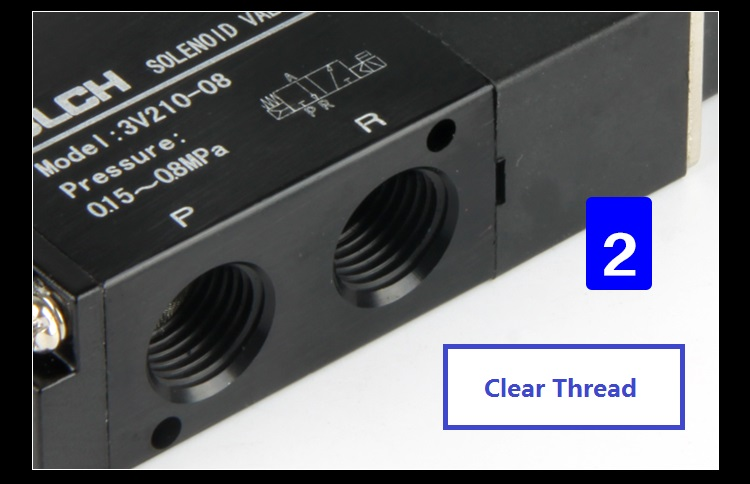

    O1CN01yrc9Vc1OEjXHIuquq_!!2200642471674

    O1CN01wrv7qj1OEjXEcOMOh_!!2200642471674

    Ordering  code

     MODEL:  3V210-08 AC220V

    3V 2 10 _ 6 AC220V
    model body size valve type
    		Port size voltage
    3V: 3/2 way 1: 100  body size 10: Single coil 5/2 way
    		M5: M5 AC220V
    solenoid valve 2: 200  body size 20: Double coil 5/2 way
    		06: 1/8″ AC110V

    		3: 300  body size

    		08: 1/4″ DC24V

    		4: 400  body size

    		10: 3/8″ DC12V




    		15: 1/2″ AC24V

    Specification

    Model 3V110-M5 3V110-06 3V210-06 3V210-08 3V310-08 3V310-10 3V410-10 3V410-15
    2V120-M5 3V120-06 3V220-06 3V220-08 3V320-08 3V320-10 3V420-10 3V420-15
    Working Fluid Air (to be filtered by 40um filter element)
    Working mode Internal pilot  or external pilot
    Port Size M5 1/8″ 1/8″ 1/4″ 1/4″ 3/8″ 3/8″ 1/2″
    Port and position 3 port 2 position
    Working pressure Range 0.15-0.8MPa (21-114psi)
    Proof Pressure    1.2 Mpa (175psi）
    Ambient  temperature  -20 ℃-70℃
    Material of body Aluminum alloy

    Overall dimension

    3V series Solenoid Valve
