Air preparation UFRL Series F.R.L combination

loading

Share to:
Availability:
Inquire

    O1CN01EOxuzF1OEjWzB35oa_!!2200642471674

    O1CN014REwDi1OEjX0OZJyL_!!2200642471674

    O1CN01Z4t7By1OEjX0zkmu4_!!2200642471674

    Products Feature :

    • Remove water and particle effectively.

    • 40μm and 5μm filter element are easily interchangeable and replaceable.

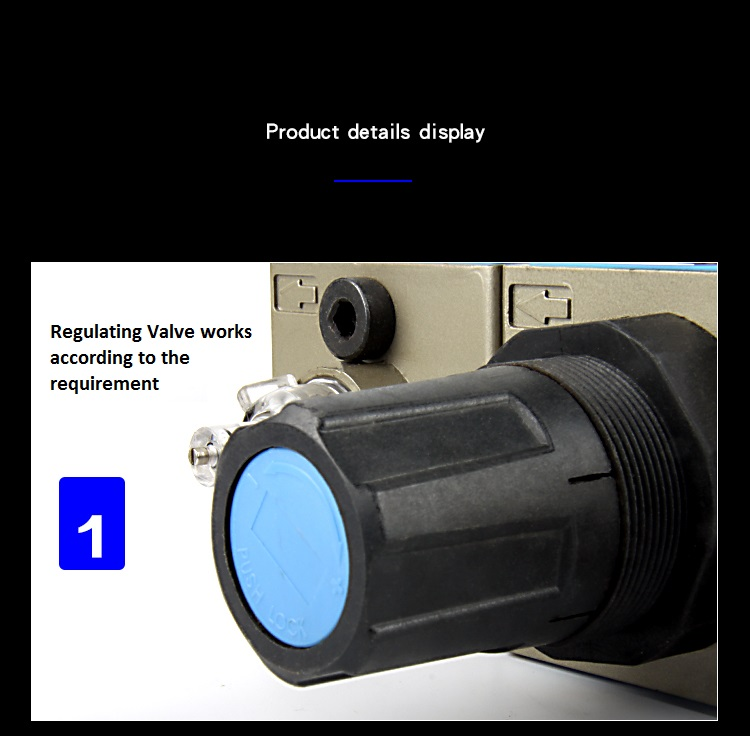

    • Accurate and easy pressure setting.

    • Lubricator oil can be replenished without stopping air supply.

    • Oil spray in mist ensures good lubrication for machines.

    • Lubricator oil (Recommended):ISO-VG32

    Specification:

    Model Components Port size Rc(G) Max. Flow Working pressure Range MPa Options/Description
    Filter Regulator Lubricator L/min(ANR)
    UFRL-02 UF-02 UR-02 UL-02 1/4″ 2080 0.15~0.85 Differential pressure drain type (Standard type)
    UFRL-03 UF-03 UR-03 UL-03 3/8″ 2100 -D automatic drain type
    UFRL-04 UF-04 UR-04 UL-04 1/2″ 2600
    UFRL-06 UF-06 UR-06 UL-06 3/4″ 7940 Environment current temperature: 5~60℃
    UFRL-08 UF-08 UR-08 UL-08 1″ 8200 Recommended oil: Turbine oil No. ISOVG32ISOVG32
