Ordering Code
| MODEL: | SDA50x50 -S-B | ||||
| SDA | 50×50 | - | S | - | B |
| Series | Bore size X Stroke | Magnet | Rod type | ||
| SDA:compact thread | Blank: Without | Blank: Female | |||
| SDAD: Double rod | S:With | B:Male thread | |||
| SDAJ: Adjustable stroke | N:No thread | ||||
| SSA: Single acting push | |||||
| STA: Single acting pull | |||||
| SDAT: Duplex type | |||||
| SDAW: Duplex-end type | |||||
Specification
Bore size(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 |
Acting type | Double acting | |||||||||
Fluid | Air(to be Filtered by 40μm filter element) | |||||||||
Operating pressure | 0.l-0.9Mpa(1~9kgf/cm2) | |||||||||
Proof pressure | 1.35Mpa(13.5kgf/cm2) | |||||||||
Temperature ℃ | -5~70℃ | |||||||||
Cushion type | with Cushion | |||||||||
Port size | 1/8″ | 1/4″ | 3/8″ | 1/2″ | ||||||
Body material | Aluminum alloy | |||||||||

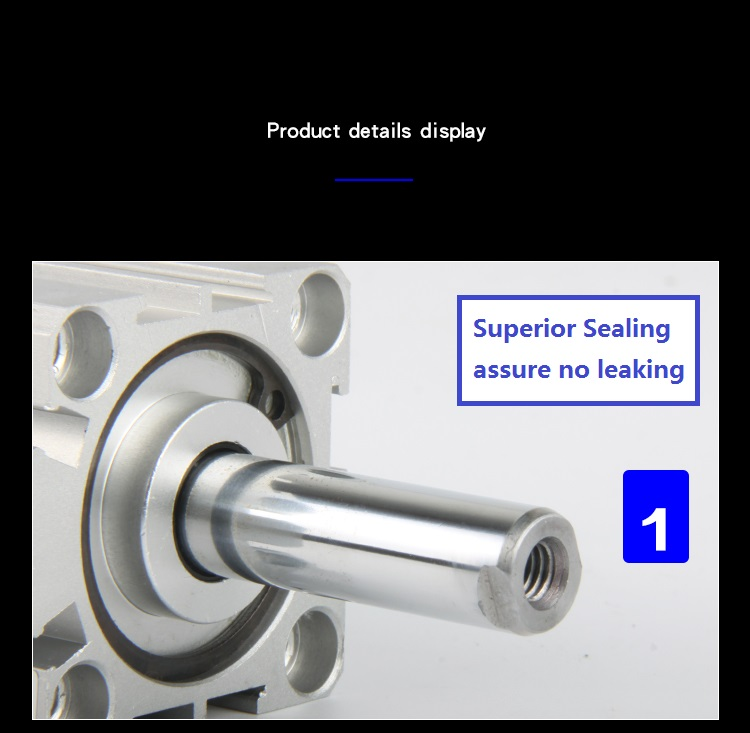

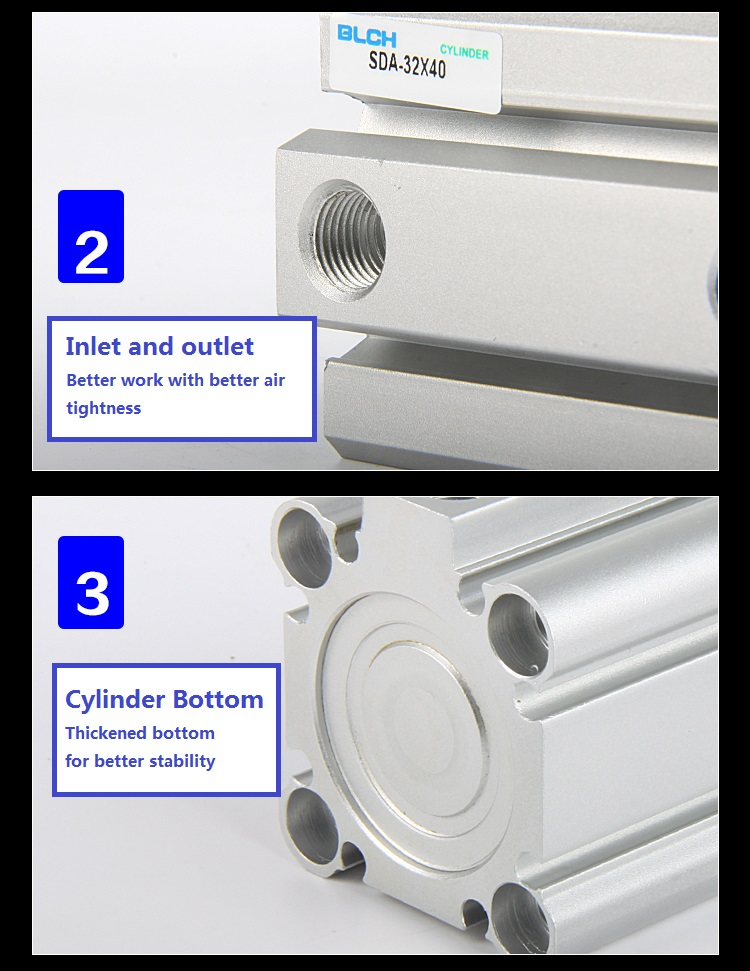

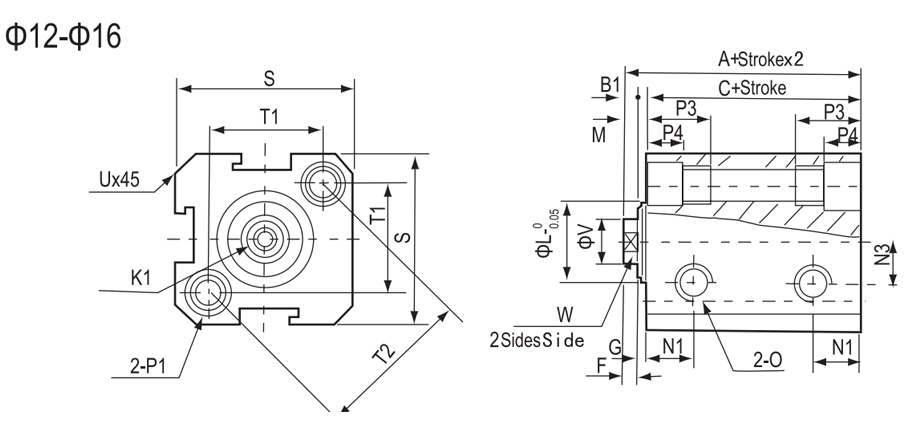

Overall dimension
