Model representation method
| MODEL: | MOV321R | ||
| MOV | 32 | 1 | R |
| (Specification code) | (Ways code) | (Port size) | (Beutton type) |
| MOV series | 32:3/2 Way | 1:G1/8 | Blank:Basic type |
| Mechanical Valve | R: Roller type | ||
| TB: Selecting type button | |||
| EB: Lock type button | |||
| PP: Flat type button | |||
| PPL: Convex type button | |||
| PB: Big circle type | |||
Technical parameters
| Models | MOV321 | MOV321R | MOV321PP | MOV321PPL | MOV321PB | MOV321EB | MOV321TB |
| Working Medium | air (filtered by 40UM sieve ) | ||||||
| Acting mode | Direct type | ||||||
| Port size | 06:G1/8 | ||||||
| Working pressure | 0~0.8Mpa | ||||||
| Working temperature | -5~60℃(28~140° F) | ||||||
| Lubricating | No need | ||||||

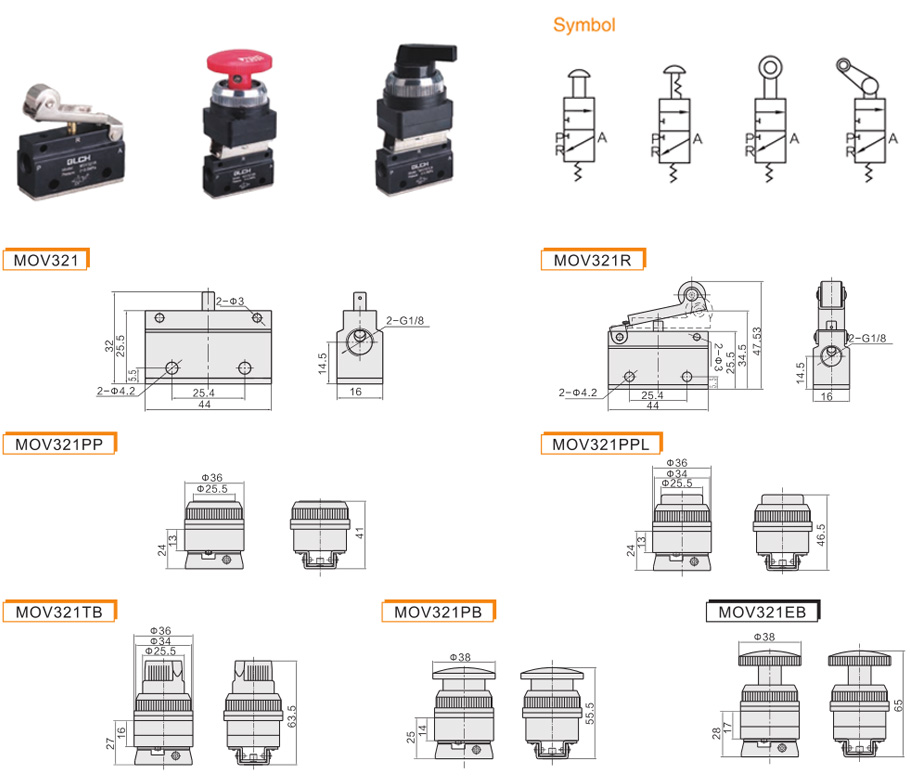

Outline dimension ( mm )
