HV series Hand Rotary Valve

loading

Share to:
Availability:

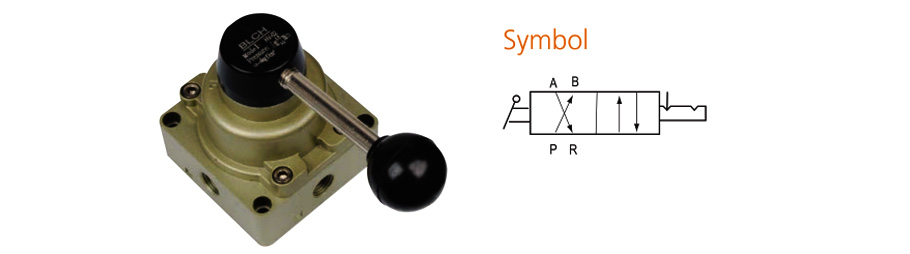

    HV series Hand Rotary Valve



    Order code

    MODEL: HV-02

    HV
    2
    Model
    Port Size


    02:1/4″


    03:3/8″


    04:1/2″

    Specification

    Model HV-02 HV-03 HV-04
    Working Fluid Air
    Working Mode Direct Acting type
    Port Size 1/4″ 3/8″ 1/2″
    Working pressure range 0~0.8MPa
    Working temperature range 0~60℃
    Lubricating No Need
    Weight(kg)
    Main Material Body Aluminum Alloy
    O ring NBR
