Air preparation UF series Air filter

loading

Share to:
Availability:
Inquire

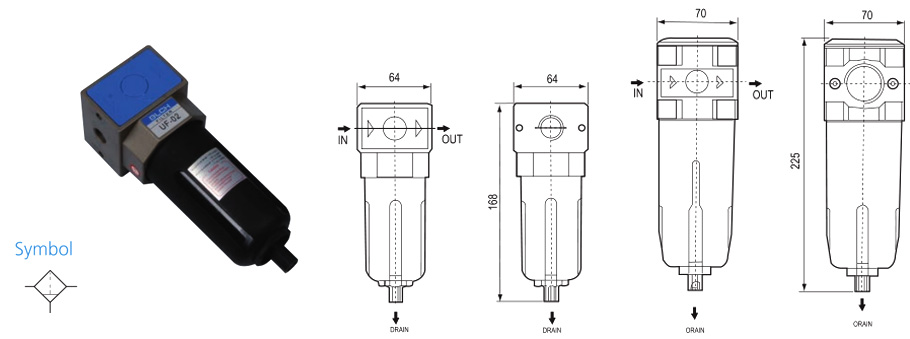

    Overall Dimension(mm)

    UF series Air filter



    Specification

    Model

    Port size

    Rc(G)

    Filter accuracy

    Max. Flow

    L/min(ANR)

    Working pressure range MPa

    Options/Description

    UF-02

    1/4″

    40μm

    2440

    0.15-0.85

    		 Differential pressure drain type (Standard type)-D automatic drain typeEnvironment current temperature: 5~60℃

    UF-03

    3/8″

    2450

    UF-04

    1/2″

    3030

    UF-06

    3/4″

    8250

    UF-08

    1″

    8860
