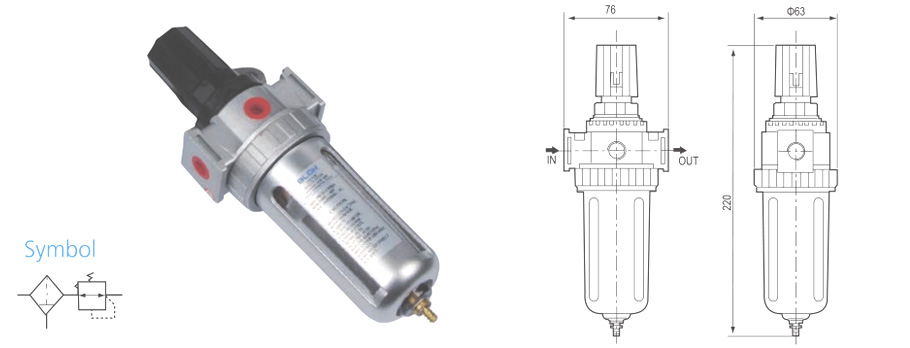

Overall Dimension(mm)
Ordering code
| MODEL: | SFR-200 | |
| S | FR | 200 |
| Series code | Funcation | Body size |
| Filter-Regulator | 200 | |
| 300 | ||
| 400 | ||
Specification
| Model | SFR-200 | SFR-300 | SFR-400 | |
| Components | Filter | SFR-200 | SFR-300 | SFR-400 |
| Regulator | ||||
| Port size Rc(G) | 1/4″ | 3/8″ | 1/2″ | |
| Pressure gauge port size | 1/4″ | 1/4″ | 1/4″ | |
| Pressure gauge | Y50 | Y50 | Y50 | |
| Max. Flow L/min(ANR) | ||||
| Working medium | Air | |||
| Working pressure Range | 0.15-0.85 Mpa | |||
| Max pressure (Mpa) | 1.0 MPa | |||
| Ambient temperature | - 5~60℃ | |||
| Filter accuracy | 40um ( standard) 5um (option) | |||
| Recommended oil: | Turbine NO.1 oil (ISOVG32) | |||
| Material of main part | Body | Aluminum alloy | ||
| Bowl | PC | |||
| Bowl guard | Plastic | |||
