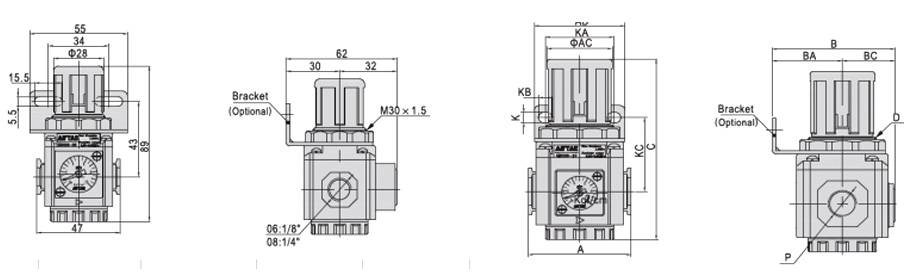

Overall Dimension(mm)
| Model | A | AB | AC | B | BA | BC | C | D | K | KA | KB | KC | P |
| GR2 00-06 | 47 | 55 | 28 | 62 | 30 | 32 | 89 | M30x1.5 | 5.5 | 34 | 15 | 43 | PT1/8 |
| GR200-08 | 47 | 55 | 28 | 62 | 30 | 32 | 89 | M30x1.5 | 5.5 | 34 | 15 | 43 | PT1/4 |
| GR300-08 | 60 | 53 | 38 | 72 | 41 | 31 | 112.5 | M40x1.5 | 6.5 | 40 | 8 | 46 | PT1/4 |
| GR300-10 | 60 | 53 | 38 | 72 | 41 | 31 | 112.5 | M40x1.5 | 6.5 | 40 | 8 | 46 | PT3/8 |
| GR3OO-15 | 60 | 53 | 38 | 72 | 41 | 31 | 112.5 | M40x1.5 | 6.5 | 40 | 8 | 46 | PT1/2 |
| GR400-10 | 80 | 72 | 52 | 90 | 50 | 40 | 140.5 | M55x2.0 | 8.5 | 55 | 11 | 53 | PT3/8 |
| GR400-15 | 80 | 72 | 52 | 90 | 50 | 40 | 140.5 | M55x2.0 | 8.5 | 55 | 11 | 53 | PT1/2 |
Product Feature
1.Embedded square pressure gauge is used to save installation space.
2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3.Balanced design is adopted for the pressure adjustment mechanism .
Ordering code
| MODEL: | GR300-10 | ||||
| G | R | 300 | _ | 10 | |
| Series code | Funcation | Body size | Port size | ||
| Regulator | 200 | 06: 1/8 | |||
| 300 | 08: 1/4 | ||||
| 400 | 10：3/8 | ||||
| 15: 1/2 | |||||
Specification
| Model | GR200-06 | GR200-08 | GR300-08 | GR300-10 | GR300-15 | GR400-10 | GR400-15 | |
| Port size PT | 1/8″ | 1/4″ | 1/4″ | 3/8″ | 1/2″ | 3/8″ | 1/2″ | |
| Max. Flow L/min(ANR) | 3000 | 3000 | 4500 | 4500 | 4500 | 6500 | 6500 | |
| Working pressure Range | 0.15-0.9 Mpa (22-130psi) | |||||||
| Max pressure (Mpa) | 1.0 MPa | |||||||
| Ambient temperature | -20~60℃ | |||||||
| Material of Body | Aluminum alloy | |||||||
