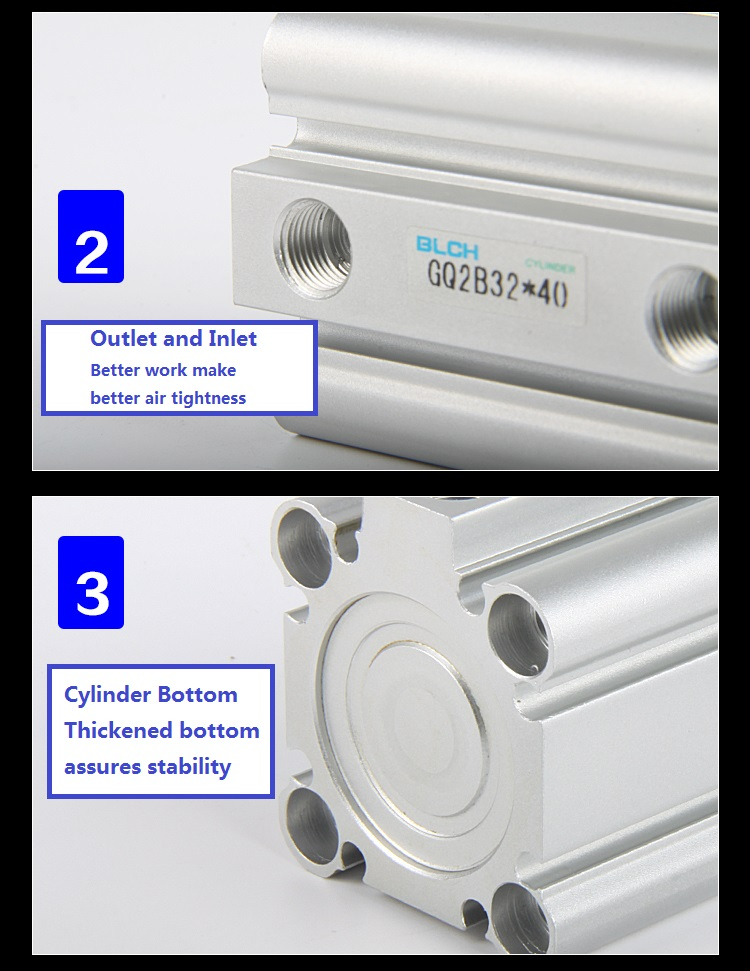

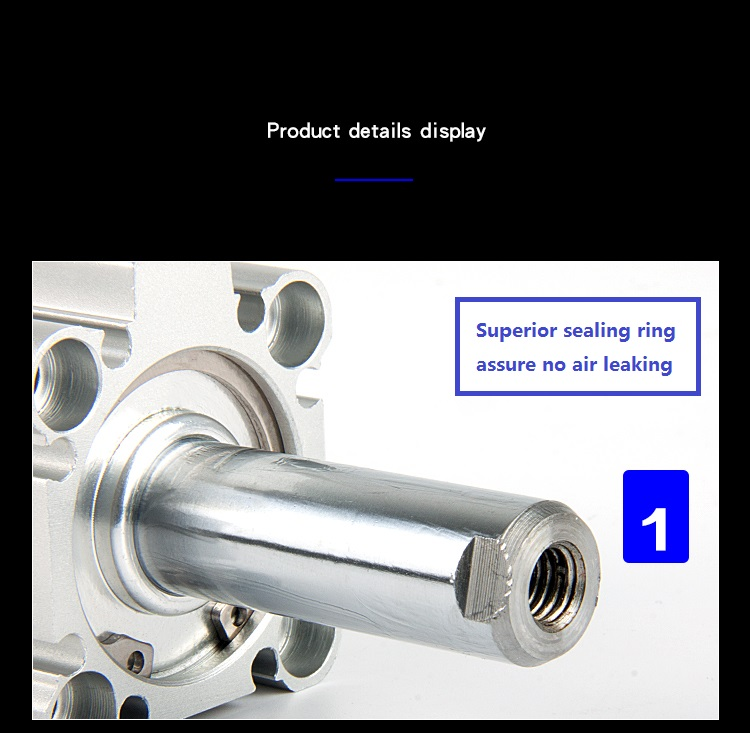

Ordering Code
| MODEL: | CQ2B-50×50-DM | |||
| CQ2 | B | 50×50 | D | M |
| CQ2: Standard | Mountings | Bore size X Stroke | Acting type | Rod type |
| CDQ2: Standard with magnet | B:through hole | D: Double acting | Blank: Female thread | |
| A:Both end thread hole | S:Single acting push | M:external thread | ||
| T:Single acting pull | ||||
Criteria for selection
| Bore Size | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 |
| Type | |||||||||||
| Auto switch | D-A73L D-A93 | ||||||||||
Specification
| Bore size(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 |
| Acting type | Double acting | |||||||||
| Fluid | Air((to be filtered by 40μm filter element) | |||||||||
| Operating pressure | 0.1 ~0.9Mpa(1~9kgf/cm2) | |||||||||
| Proof pressure | 1.35Mpa(13.5kgf/cm2) | |||||||||
| Temperature ℃ | -5~70℃ | |||||||||
| Cushion type | with cushion | |||||||||
| Port size | M5 | 1/8″ | 1/4″ | 3/8″ | ||||||
| Body material | Aluminum alloy | |||||||||
Stroke
Bore size(mm) | Standard Stroke(mm) | Max stroke (mm) | Max std Stroke(mm) |
12 | 5 10 15 20 25 30 35 40 45 50 | 50 | 60 |
16 | 5 10 15 20 25 30 35 40 45 50 | 50 | 60 |
20 | 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 | 80 | 90 |
25 | 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 | 80 | 90 |
32 | 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 | 130 | 150 |
40 | 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 | 130 | 150 |
50 | 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 | 130 | 150 |
63 | 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 | 130 | 150 |
80 | 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 | 130 | 150 |
100 | 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 | 130 | 150 |
