Air preparation C Series F.R.L Combination

loading

Share to:
Type: Source Treatment Unit
Place of Origin: Zhejiang, China
Brand Name: BLCH or OEM
Material: Aluminum Alloy, Aluminum Alloy
Product name: precision pneumatic FRL components
Port size: 1/4"
Color: Black
Fluid: Compressed Air
Working medium: Air Water Oil Gas
Body Material: Die-casting Aluminum Alloy
Application: Pneumatic Part
Working temp.: 0-60℃
Working pressure: 0.5-0.85Mpa
Warranty: 1 Year
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Construction works , Energy & Mining, Food & Beverage Shops, Other
Weight (KG): 1
Video outgoing-inspection: Provided
Machinery Test Report: Not Available
Availability:
Inquire

    Product feature:

    1. The structure is delicate and compact, which is convenient for installation and application .

    2.The pressed-in  self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.

    3.The pressure loss is low and efficiency of water separating is high.

    4.The quantity of oil dripping can be directly  observed through transparent check-dome.

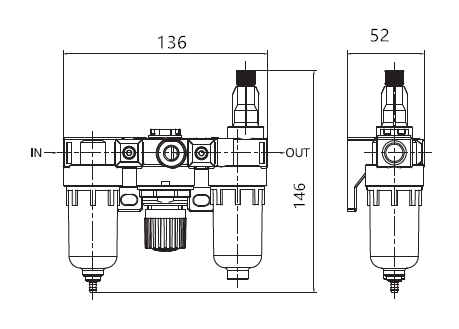

    Overall Dimension

    CC2000

    Specification

    Model
    		Components
    		Port size  Rc(G) Max. Flow L/min(ANR) Working pressure Range (Mpa) Ambient  temperature Recommended oil:
    Filter Regulator Lubricator
    CC2000 CF2000 CR2000 CL200 1/4″ 650 0.15-0.85 -5~60℃ Turbine NO.1 oil (ISOVG32)
    Material of body
    		 Aluminum alloy
    Material of bowl
    		PC
    Material of guard
    		CC2000 : without  ,
