Air preparation C series Filter-Regulator

loading

Share to:
The Air preparation C series Filter-Regulator is a high-quality FRL (Filter-Regulator-Lubricator) product that is designed for air preparation in industrial applications. This series features a compact and modular design that integrates a filter and regulator into a single unit.

The filter element of the C series Filter-Regulator is designed to remove solid particles and condensate from compressed air, while the regulator maintains a stable air pressure. It also features a lockable regulator knob to prevent accidental pressure adjustments.

The C series Filter-Regulator is made of high-quality materials and features a robust construction that ensures long-term reliability and durability. Additionally, it is easy to install and maintain, with a quick-release bayonet bowl that allows for easy element replacement.

Overall, the Air preparation C series Filter-Regulator is an excellent choice for air preparation in industrial applications. Its compact design, filter and regulator integration, and reliable performance make it an ideal FRL product for maintaining high-quality compressed air.
Availability:

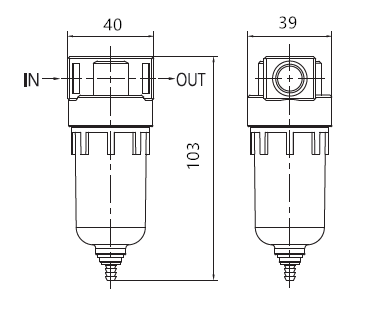

    Overall Dimension(mm)
    CF2000

    Specification

    Model Port size  Rc(G) Max. Flow L/min(ANR) Working pressure Range (Mpa) Ambient  temperature Recommended oil:
    CFR2000 1/4″ 650 0.15-0.85 -5~60℃ Turbine NO 1 oil (ISOVG32)
    Material of body  Aluminum alloy
    Material of bowl PC
    Material of guard CFR2000 : without  ,
