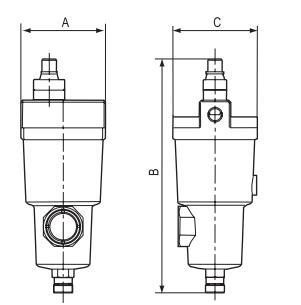

Overall Dimension
Product Feature
In terms of water removal rate, water separator is higher than normal filter, lower than the drier, but price is cheaper than the drier. Flexible installation space, fit for the case without using of the dryer
Ordering code
| MODEL: | AMG 250-04D | ||||
| AM | G | 250 | _ | 04 | D |
| Series code | Funcation | Body size | Port size | Blank: manual type | |
| G: water separator | 150 | 01: 1/8 | D: Automatic Drain | ||
| D: mist micro separator | 250 | 02: 1/4 | |||
| 350 | 03：3/8 | ||||
| 450 | 04: 1/2 | ||||
| 550 | 06：3/4 | ||||
| 10 : 1″ | |||||
| Overall | Applicable compressor (kw) | Port size Rc (G) | Max. Flow | Max Working pressure MPa | Options/Description | |
| L/min(ANR) | ||||||
| AMD/AMG150 | 01/02 | 2.2 | 1/4″ | 200 | 1.0Mpa | -Manual drain type (Standard type) |
| 03 | 3/8″ | |||||
| AMD/AMG250 | 02/03 | 5.5 | 3/8″ | 500 | ||
| 04 | 1/2″ | |||||
| AMD/AMG350 | 03/04/06 | 11 | 3/4″ | 1000 | ||
| AMD/AMG450 | 04/06/10 | 15 | 1″ | 2000 | ||
| AMD/AMG550 | 10 | 22 | 1″ | 3500 | ||
| TYPE | A | B | C |
| AMD150-02/03 | 63 | 197 | 67 |
| AMD150-03/04 | 76 | 210 | 76 |
| AMD350-06 | 90 | 240 | 90 |
| AMD450-10 | 105 | 277 | 105 |
| AMD550-10 | 122 | 295 | 122 |
